Introduction

Filament’s grid system allows you to create responsive, multi-column layouts using any layout component. Filament provides a set of built-in layout components to help you build these: You may also create your own custom layout components to display components however you wish.

​
Grid system

All layout components have a columns() method that you can use in a couple of different ways:
  • You can pass an integer like columns(2). This integer is the number of columns used on the lg breakpoint and higher. All smaller devices will have just 1 column.
  • You can pass an array, where the key is the breakpoint and the value is the number of columns. For example, columns(['md' => 2, 'xl' => 4]) will create a 2 column layout on medium devices, and a 4 column layout on extra large devices. The default breakpoint for smaller devices uses 1 column, unless you use a default array key.
Breakpoints (sm, md, lg, xl, 2xl) are defined by Tailwind, and can be found in the Tailwind documentation.
As well as allowing a static value, the columns() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​
Grid column spans

In addition to specifying how many columns a layout component should have, you may also specify how many columns a component should fill within the parent grid, using the columnSpan() method. This method accepts an integer or an array of breakpoints and column spans:
  • You can pass an integer like columnSpan(2). This integer is the number of columns that are consumed on the lg breakpoint and higher. All smaller devices span just 1 column.
  • columnSpan(['md' => 2, 'xl' => 4]) will make the component fill up to 2 columns on medium devices, and up to 4 columns on extra large devices. The default breakpoint for smaller devices uses 1 column, unless you use a default array key.
  • columnSpan('full') will make the component fill the full width of the parent grid on the lg breakpoint and higher, regardless of how many columns there are. All smaller devices span just 1 column.
  • columnSpanFull() will make the component fill the full width of the parent grid on all devices, regardless of how many columns it has.
As well as allowing a static value, the columnSpan() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​
Grid column starts

If you want to start a component in a grid at a specific column, you can use the columnStart() method. This method accepts an integer, or an array of breakpoints and which column the component should start at:
  • You can pass an integer like columnStart(2). This integer is column that the component will start on for the lg breakpoint and higher. All smaller devices start the component on the first column.
  • columnStart(['md' => 2, 'xl' => 4]) will make the component start at column 2 on medium devices, and at column 4 on extra large devices. The default breakpoint for smaller devices uses 1 column, unless you use a default array key.
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Grid;

Grid::make()
    ->columns([
        'sm' => 3,
        'xl' => 6,
        '2xl' => 8,
    ])
    ->schema([
        TextInput::make('name')
            ->columnStart([
                'sm' => 2,
                'xl' => 3,
                '2xl' => 4,
            ]),
        // ...
    ])
In this example, the grid has 3 columns on small devices, 6 columns on extra large devices, and 8 columns on extra extra large devices. The text input will start at column 2 on small devices, column 3 on extra large devices, and column 4 on extra extra large devices. This is essentially producing a layout whereby the text input always starts halfway through the grid, regardless of how many columns the grid has.
As well as allowing a static value, the columnStart() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​
Grid column ordering

If you want to control the visual order of components in a grid without changing their position in the markup, you can use the columnOrder() method. This method accepts an integer, a closure, or an array of breakpoints and order values:
  • You can pass an integer like columnOrder(2). This integer is the order that the component will appear in for the lg breakpoint and higher. All smaller devices use the default order, unless you use a default array key.
  • columnOrder(['md' => 2, 'xl' => 4]) will set the component’s order to 2 on medium devices, and to 4 on extra large devices. The default breakpoint for smaller devices uses the default order, unless you use a default array key.
  • columnOrder(fn () => 1) will dynamically calculate the order using a closure.
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Grid;

Grid::make()
    ->columns(3)
    ->schema([
        TextInput::make('first')
            ->columnOrder(3), // This will appear last
        TextInput::make('second')
            ->columnOrder(1), // This will appear first
        TextInput::make('third')
            ->columnOrder(2), // This will appear second
    ])
You can also use responsive ordering to change the visual order of components based on the screen size:
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Grid;

Grid::make()
    ->columns([
        'sm' => 2,
        'lg' => 3,
    ])
    ->schema([
        TextInput::make('title')
            ->columnOrder([
                'default' => 1,
                'lg' => 3,
            ]),
        TextInput::make('description')
            ->columnOrder([
                'default' => 2,
                'lg' => 1,
            ]),
        TextInput::make('category')
            ->columnOrder([
                'default' => 3,
                'lg' => 2,
            ]),
    ])
In this example, on small screens the order will be: title, description, category. On large screens, the order will be: description, category, title.
As well as allowing a static value, the columnOrder() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​
An example of a responsive grid layout

In this example, we have a schema with a section layout component. Since all layout components support the columns() method, we can use it to create a responsive grid layout within the section itself. We pass an array to columns() as we want to specify different numbers of columns for different breakpoints. On devices smaller than the sm Tailwind breakpoint, we want to have 1 column, which is default. On devices larger than the sm breakpoint, we want to have 3 columns. On devices larger than the xl breakpoint, we want to have 6 columns. On devices larger than the 2xl breakpoint, we want to have 8 columns. Inside the section, we have a text input. Since text inputs are form fields and all components have a columnSpan() method, we can use it to specify how many columns the text input should fill. On devices smaller than the sm breakpoint, we want the text input to fill 1 column, which is default. On devices larger than the sm breakpoint, we want the text input to fill 2 columns. On devices larger than the xl breakpoint, we want the text input to fill 3 columns. On devices larger than the 2xl breakpoint, we want the text input to fill 4 columns. Additionally, we’re using the columnOrder() method to control the visual order of components in the grid based on screen size. This allows us to change the display order without altering the markup structure.
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Section;

Section::make()
    ->columns([
        'sm' => 3,
        'xl' => 6,
        '2xl' => 8,
    ])
    ->schema([
        TextInput::make('name')
            ->columnSpan([
                'default' => 1,
                'sm' => 2,
                'xl' => 3,
                '2xl' => 4,
            ])
            ->columnOrder([
                'default' => 2,
                'xl' => 1,
            ]),
        TextInput::make('email')
            ->columnSpan([
                'default' => 1,
                'xl' => 2,
            ])
            ->columnOrder([
                'default' => 1,
                'xl' => 2,
            ]),
        // ...
    ])
In this example, on screens smaller than the xl breakpoint, the email field will appear first followed by the name field. On screens larger than the xl breakpoint, the order is reversed with the name field appearing first followed by the email field.

​
Basic layout components

​
Grid component

All layout components support the columns() method, but you also have access to an additional Grid component. If you feel that your schema would benefit from an explicit grid syntax with no extra styling, it may be useful to you. Instead of using the columns() method, you can pass your column configuration directly to Grid::make():
use Filament\Schemas\Components\Grid;

Grid::make([
    'default' => 1,
    'sm' => 2,
    'md' => 3,
    'lg' => 4,
    'xl' => 6,
    '2xl' => 8,
])
    ->schema([
        // ...
    ])

​

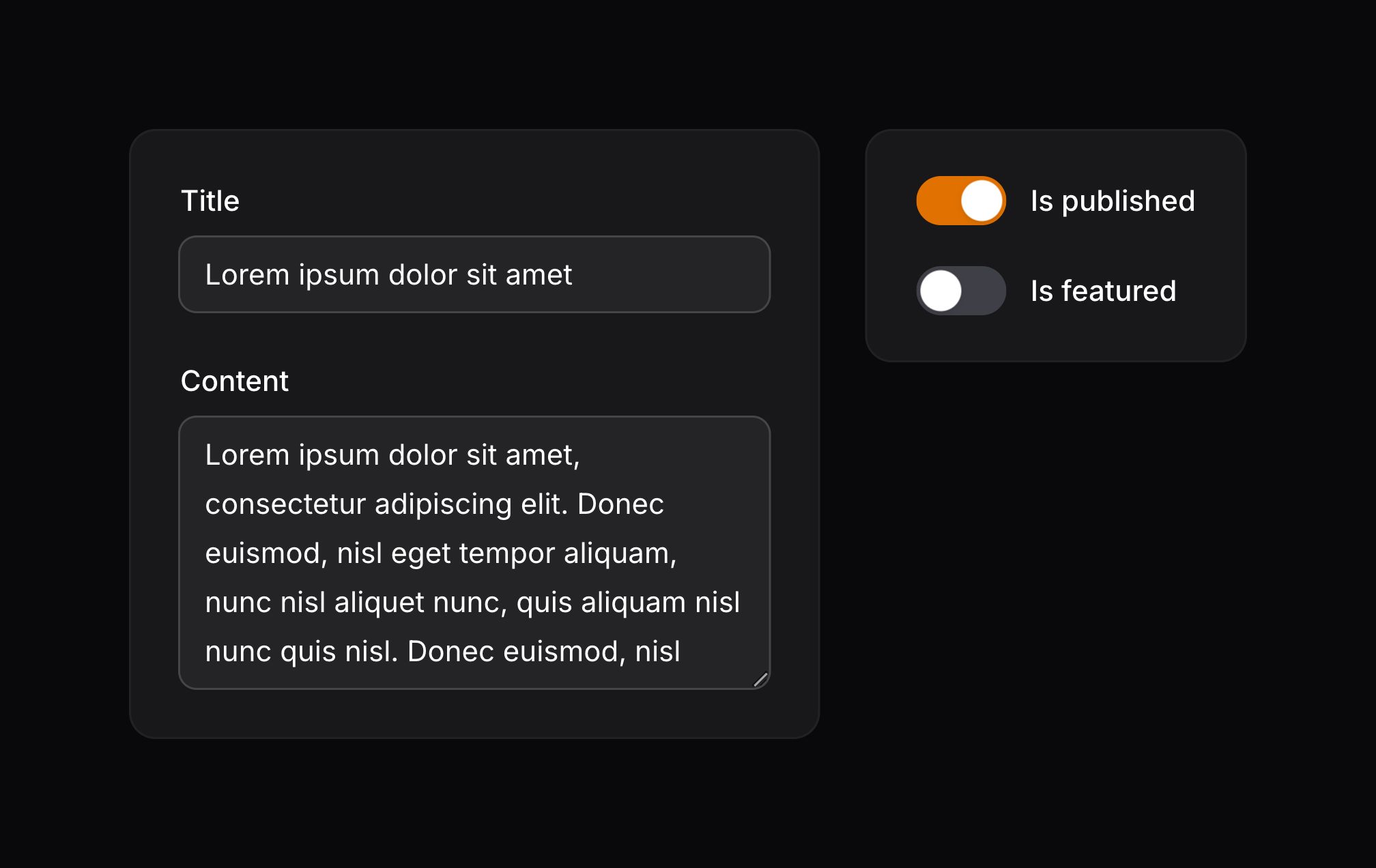

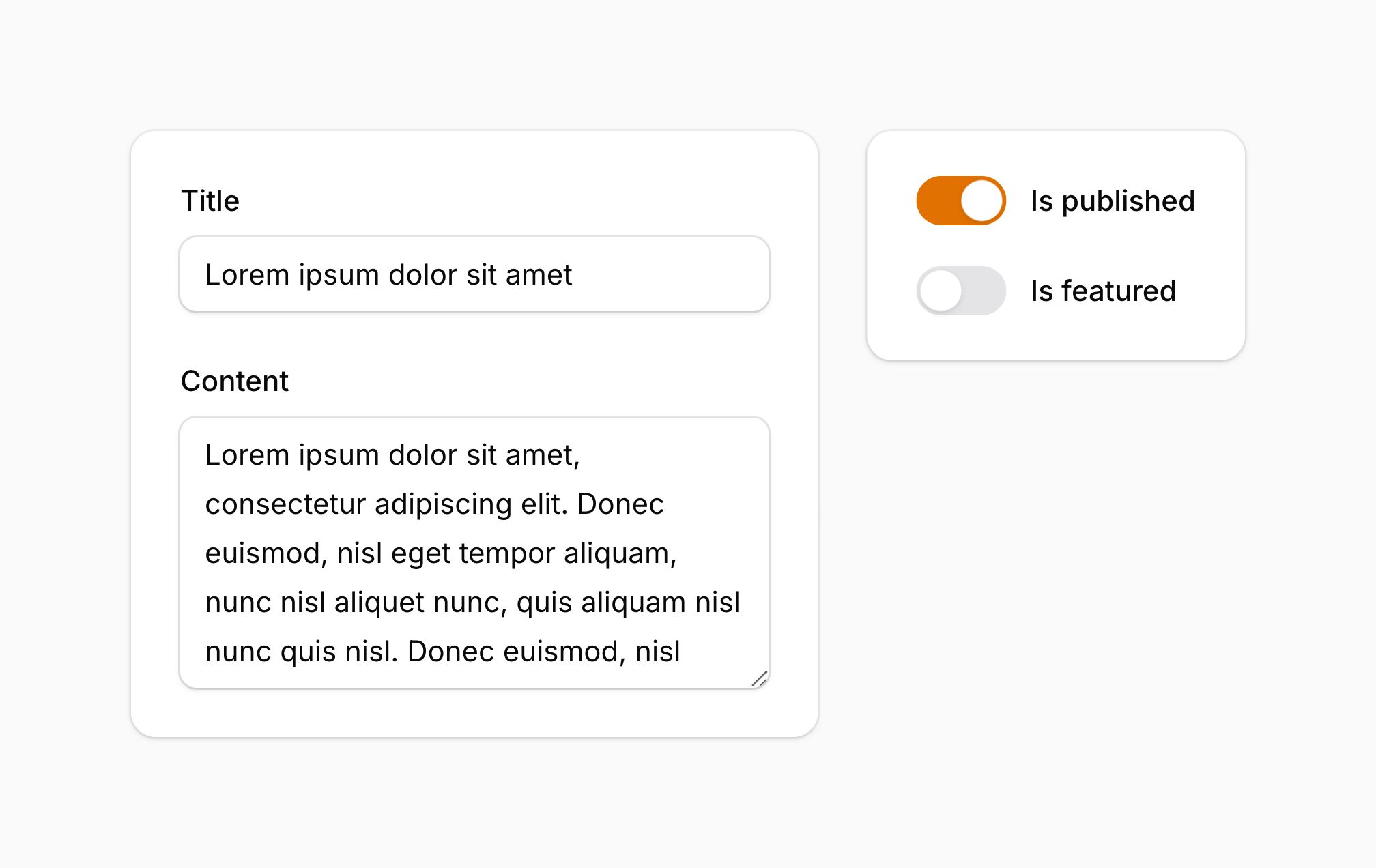

Flex component

The Flex component allows you to define layouts with flexible widths, using flexbox. This component does not use Filament’s grid system.
use Filament\Forms\Components\Textarea;
use Filament\Forms\Components\TextInput;
use Filament\Forms\Components\Toggle;
use Filament\Schemas\Components\Section;
use Filament\Schemas\Components\Flex;

Flex::make([
    Section::make([
        TextInput::make('title'),
        Textarea::make('content'),
    ]),
    Section::make([
        Toggle::make('is_published'),
        Toggle::make('is_featured'),
    ])->grow(false),
])->from('md')
In this example, the first section will grow() to consume available horizontal space, without affecting the amount of space needed to render the second section. This creates a flexible width sidebar effect. The from() method is used to control the Tailwind breakpoint (sm, md, lg, xl, 2xl) at which the horizontally-split layout should be used. In this example, the horizontally-split layout will be used on medium devices and larger. On smaller devices, the sections will stack on top of each other.
As well as allowing static values, the grow() and from() methods also accept functions to dynamically calculate them. You can inject various utilities into the functions as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​

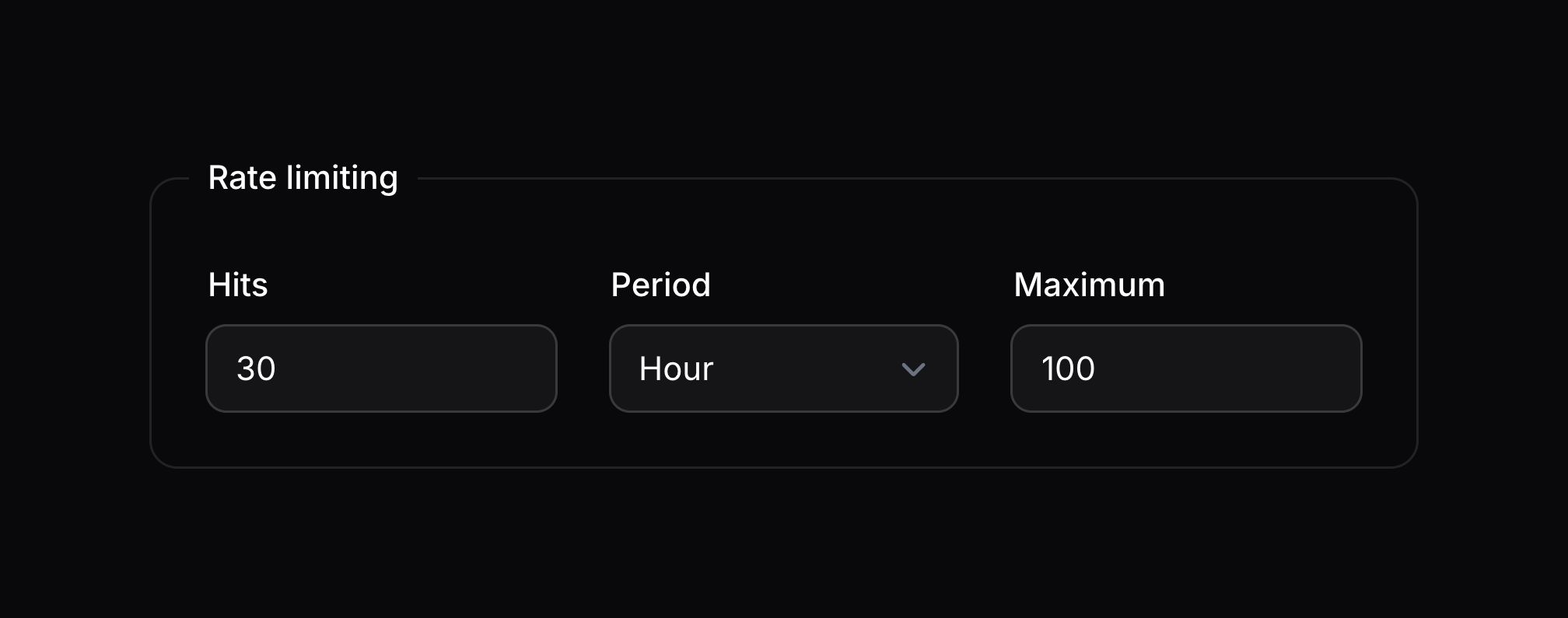

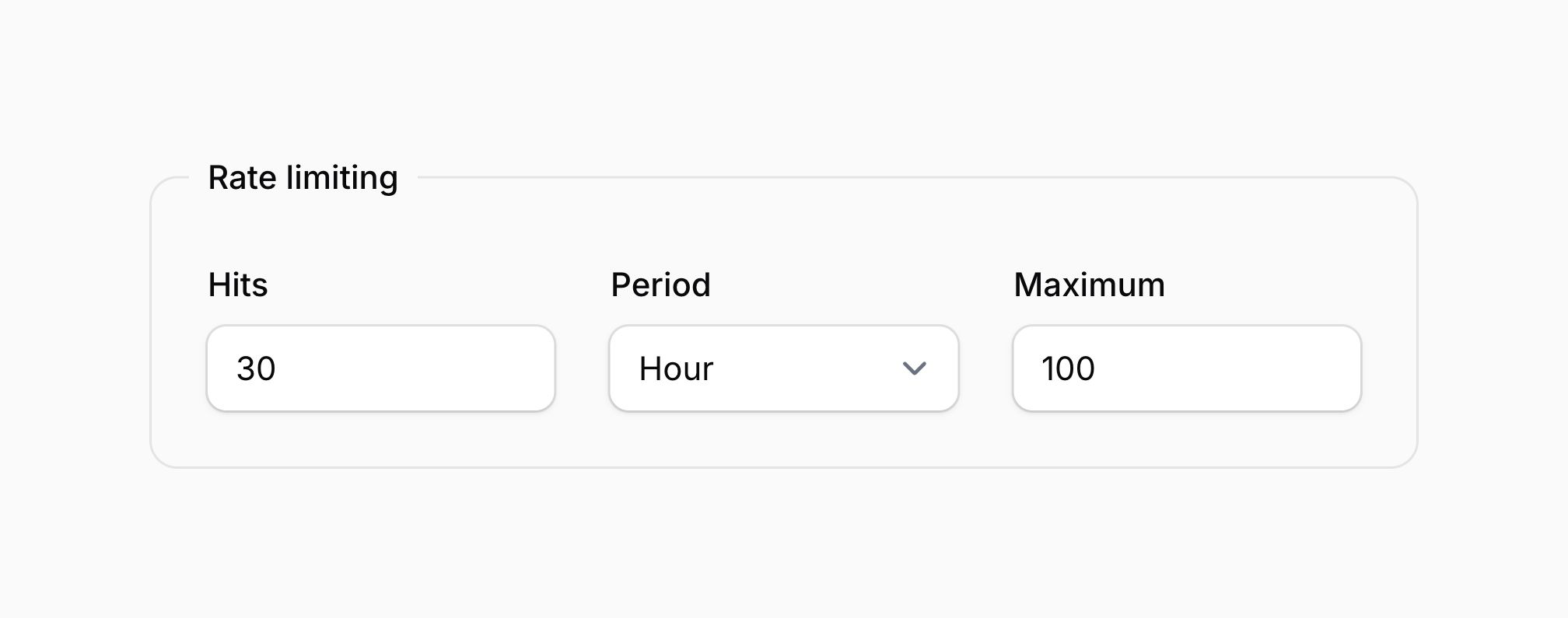

Fieldset component

You may want to group fields into a Fieldset. Each fieldset has a label, a border, and a two-column grid by default:
use Filament\Schemas\Components\Fieldset;

Fieldset::make('Label')
    ->columns([
        'default' => 1,
        'md' => 2,
        'xl' => 3,
    ])
    ->schema([
        // ...
    ])
As well as allowing a static label, the make() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​

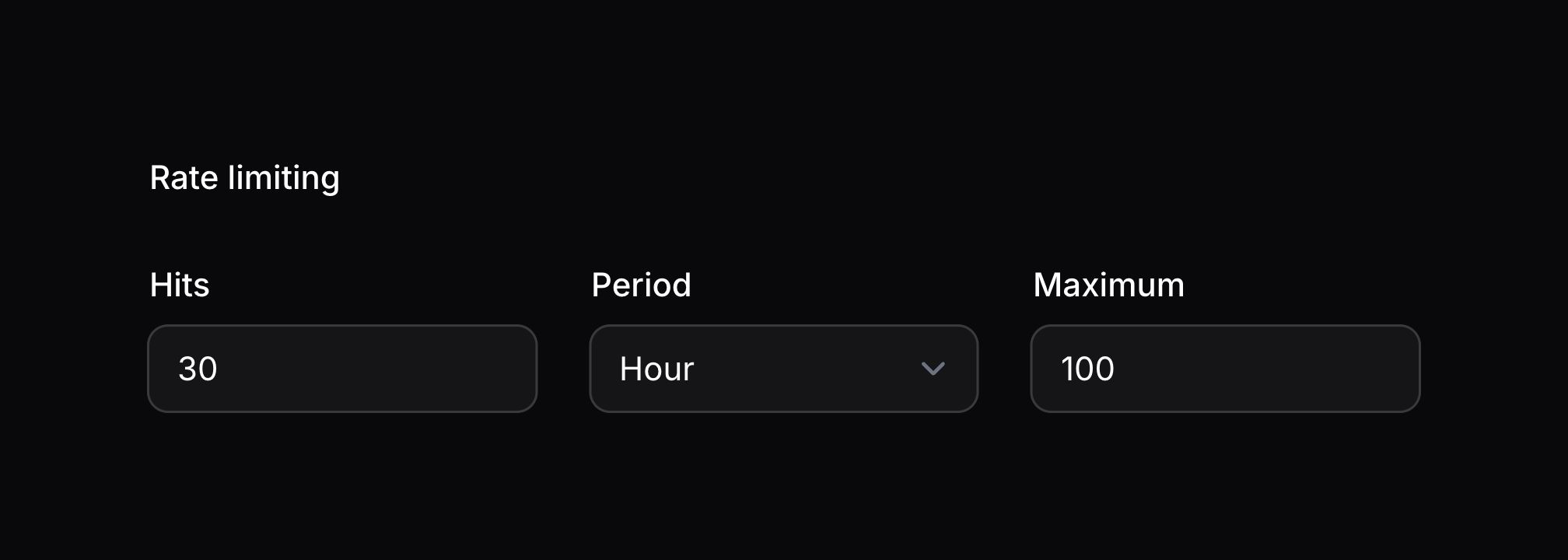

Removing the border from a fieldset

You can remove the container border from a fieldset using the contained(false) method:
use Filament\Schemas\Components\Fieldset;

Fieldset::make('Label')
    ->contained(false)
    ->schema([
        // ...
    ])
As well as allowing a static value, the contained() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.

​
Using container queries

In addition to traditional breakpoints based on the size of the viewport, you can also use container queries to create responsive layouts based on the size of a parent container. This is particularly useful when the size of the parent container is not directly tied to the size of the viewport. For example, when using a collapsible sidebar alongside the content, the content area dynamically adjusts its size depending on the collapse state of the sidebar. The foundation of a container query is the container itself. The container is the element whose width determines the layout. To designate an element as a container, use the gridContainer() method on it. For instance, if you want to define the number of grid columns in a [Grid component] based on its width:
use Filament\Schemas\Components\Grid;

Grid::make()
    ->gridContainer()
    ->columns([
        // ...
    ])
    ->schema([
        // ...
    ])
Once an element is specified as a grid container, the element or any of its children can utilize container breakpoints instead of standard breakpoints. For example, you could use @md to define the number of grid columns when the container’s width is at least 448px, and @xl for when the width is at least 576px.
use Filament\Schemas\Components\Grid;

Grid::make()
    ->gridContainer()
    ->columns([
        '@md' => 3,
        '@xl' => 4,
    ])
    ->schema([
        // ...
    ])
You can also use container breakpoints in the columnSpan(), columnStart(), and columnOrder() methods:
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Grid;

Grid::make()
    ->gridContainer()
    ->columns([
        '@md' => 3,
        '@xl' => 4,
    ])
    ->schema([
        TextInput::make('name')
            ->columnSpan([
                '@md' => 2,
                '@xl' => 3,
            ])
            ->columnOrder([
                'default' => 2,
                '@xl' => 1,
            ]),
        TextInput::make('email')
            ->columnSpan([
                'default' => 1,
                '@xl' => 1,
            ])
            ->columnOrder([
                'default' => 1,
                '@xl' => 2,
            ]),
        // ...
    ])
In this example, when the container width is smaller than the @xl breakpoint (576px), the email field will appear first followed by the name field. When the container width is at least 576px, the order is reversed with the name field appearing first followed by the email field.

​
Supporting container queries on older browsers

Container queries are not yet widely supported in browsers compared to traditional breakpoints. To support older browsers, you can define an additional layer of breakpoints alongside the container breakpoints. By prefixing the traditional breakpoint with !@, you can specify that the fallback breakpoint should be used when container queries are not supported in the browser. For example, if you want to use the @md container breakpoint for the grid columns but also support older browsers, you can define the !@md fallback breakpoint, which will be applied when container queries are unavailable:
use Filament\Schemas\Components\Grid;

Grid::make()
    ->gridContainer()
    ->columns([
        '@md' => 3,
        '@xl' => 4,
        '!@md' => 2,
        '!@xl' => 3,
    ])
    ->schema([
        // ...
    ])
You can also use !@ fallback breakpoints in the columnSpan(), columnStart(), and columnOrder() methods:
use Filament\Forms\Components\TextInput;
use Filament\Schemas\Components\Grid;

Grid::make()
    ->gridContainer()
    ->columns([
        '@md' => 3,
        '@xl' => 4,
        '!@md' => 2,
        '!@xl' => 3,
    ])
    ->schema([
        TextInput::make('name')
            ->columnSpan([
                '@md' => 2,
                '@xl' => 3,
                '!@md' => 2,
                '!@xl' => 2,
            ])
            ->columnOrder([
                'default' => 2,
                '@xl' => 1,
                '!@xl' => 1,
            ]),
        TextInput::make('email')
            ->columnOrder([
                'default' => 1,
                '@xl' => 2,
                '!@xl' => 2,
            ]),
        // ...
    ])
In this example, the fallback breakpoints ensure that even in browsers that don’t support container queries, the layout will still respond to viewport size changes, with the name field appearing first and the email field second on larger screens.

​
Controlling spacing between components

​
Reducing space between components

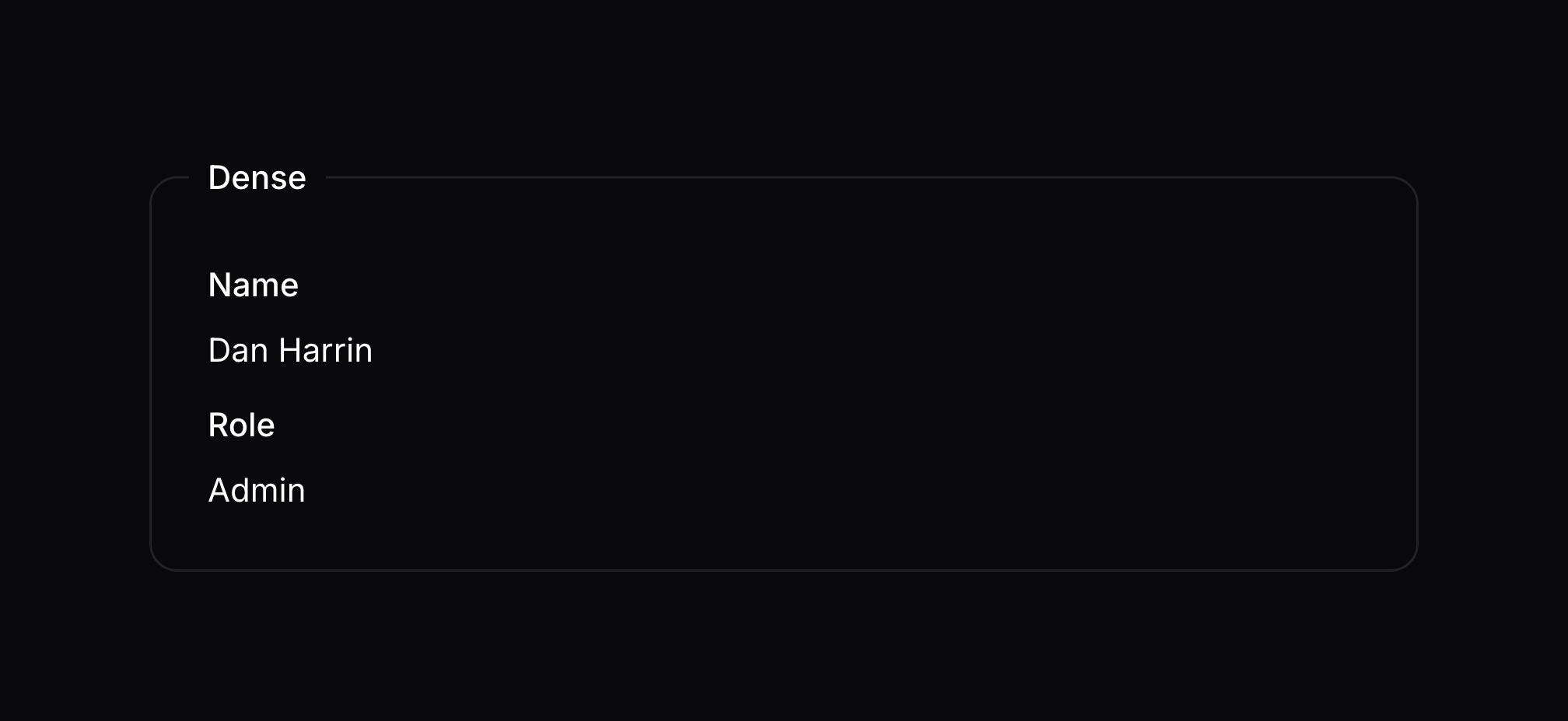

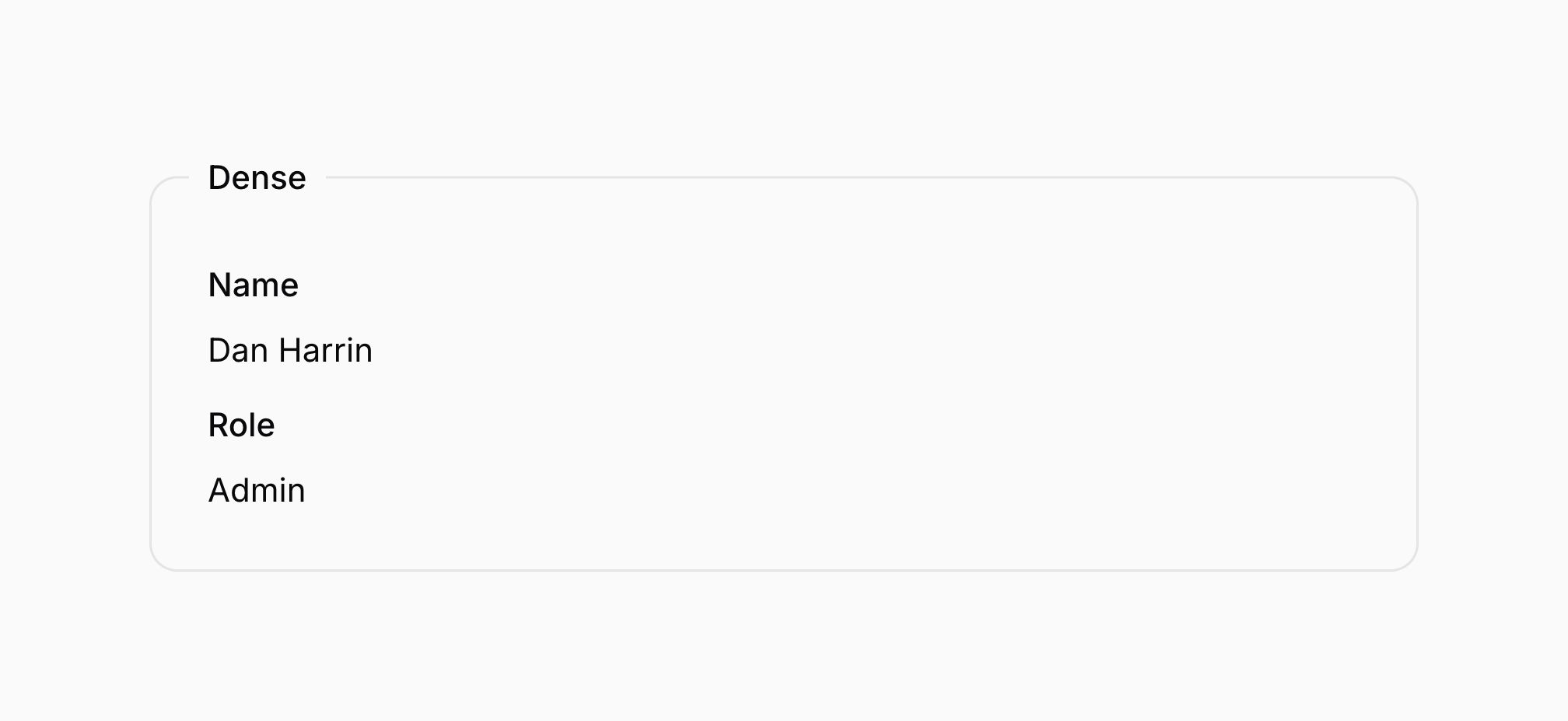

The dense() method creates a more compact layout by reducing the spacing between components by 50%:
use Filament\Schemas\Components\Fieldset;

Fieldset::make('Dense')
    ->dense()
    ->schema([
        // ...
    ])

​
Removing space between components

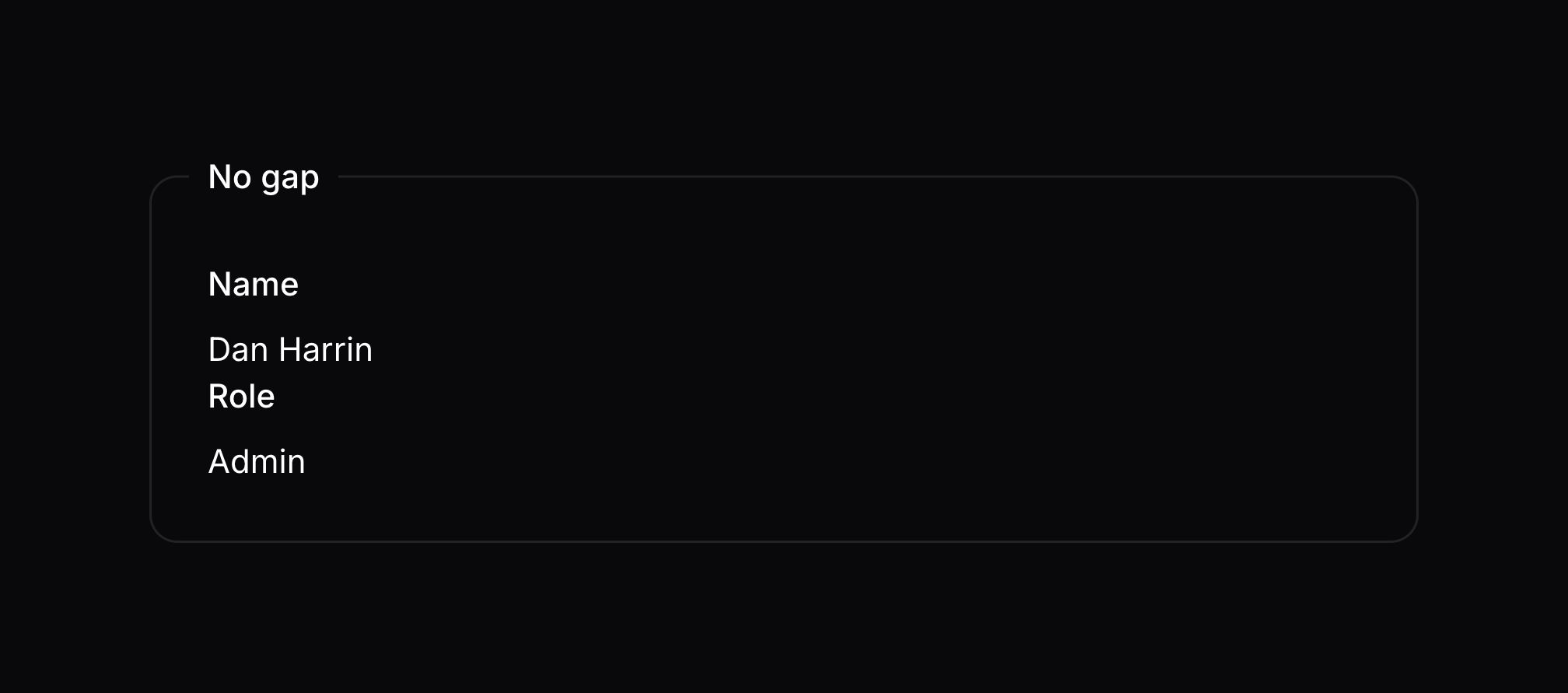

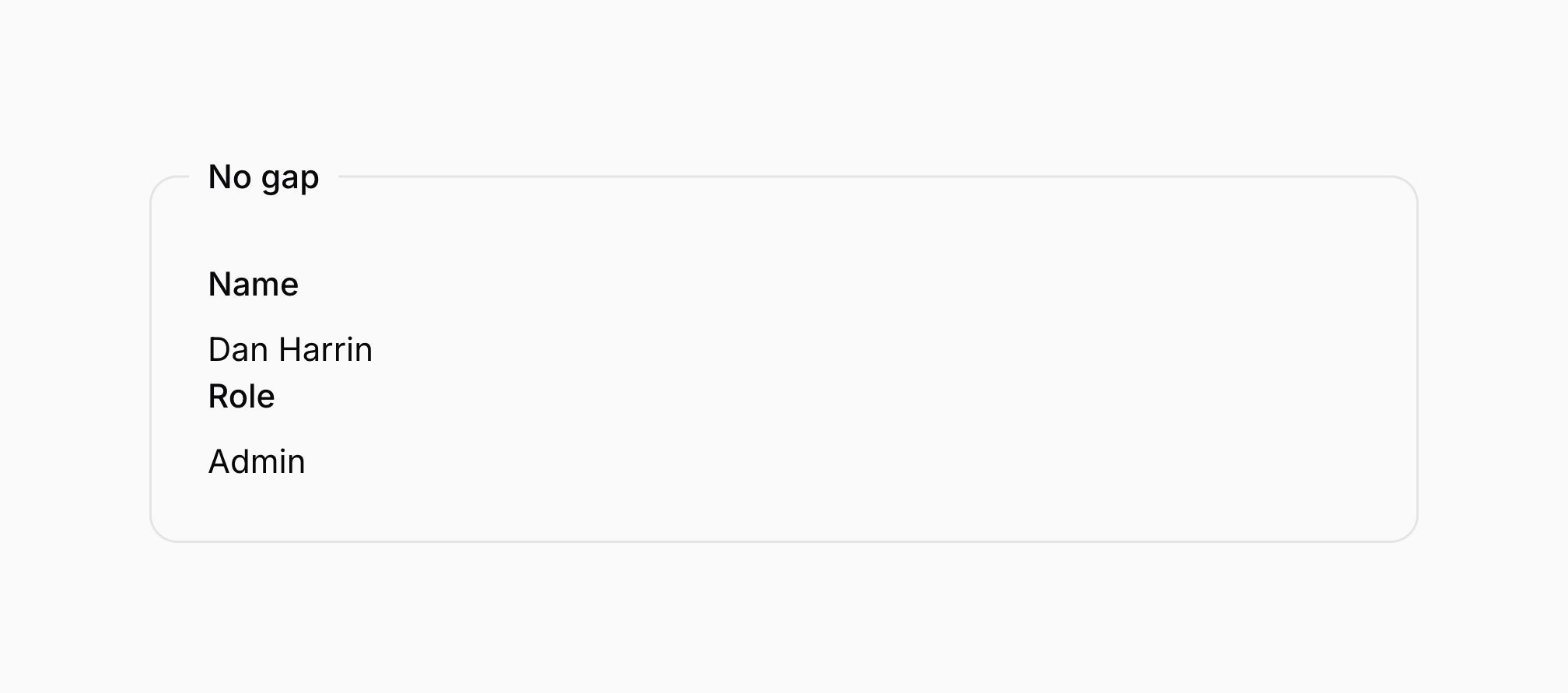

The gap(false) method removes space between components:
use Filament\Schemas\Components\Fieldset;

Fieldset::make('No gap')
    ->gap(false)
    ->schema([
        // ...
    ])

​
Adding extra HTML attributes to a layout component

You can pass extra HTML attributes to the component via the extraAttributes() method, which will be merged onto its outer HTML element. The attributes should be represented by an array, where the key is the attribute name and the value is the attribute value:
use Filament\Schemas\Components\Section;

Section::make()
    ->extraAttributes(['class' => 'custom-section-style'])
As well as allowing a static value, the extraAttributes() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.
Learn more about utility injection.
Component
$component
Filament\Schemas\Components\Component
The current component instance.
Get function
$get
Filament\Schemas\Components\Utilities\Get
A function for retrieving values from the current schema data. Validation is not run on form fields.
Livewire
$livewire
Livewire\Component
The Livewire component instance.
Eloquent model FQN
$model
?string<Illuminate\Database\Eloquent\Model>
The Eloquent model FQN for the current schema.
Operation
$operation
string
The current operation being performed by the schema. Usually create, edit, or view.
Eloquent record
$record
?Illuminate\Database\Eloquent\Model
The Eloquent record for the current schema.
By default, calling extraAttributes() multiple times will overwrite the previous attributes. If you wish to merge the attributes instead, you can pass merge: true to the method.
Edit this page on GitHub

Sponsored by

KirschbaumAgiledropSerpApiMailtrapCMS MaxBaiz.ai
