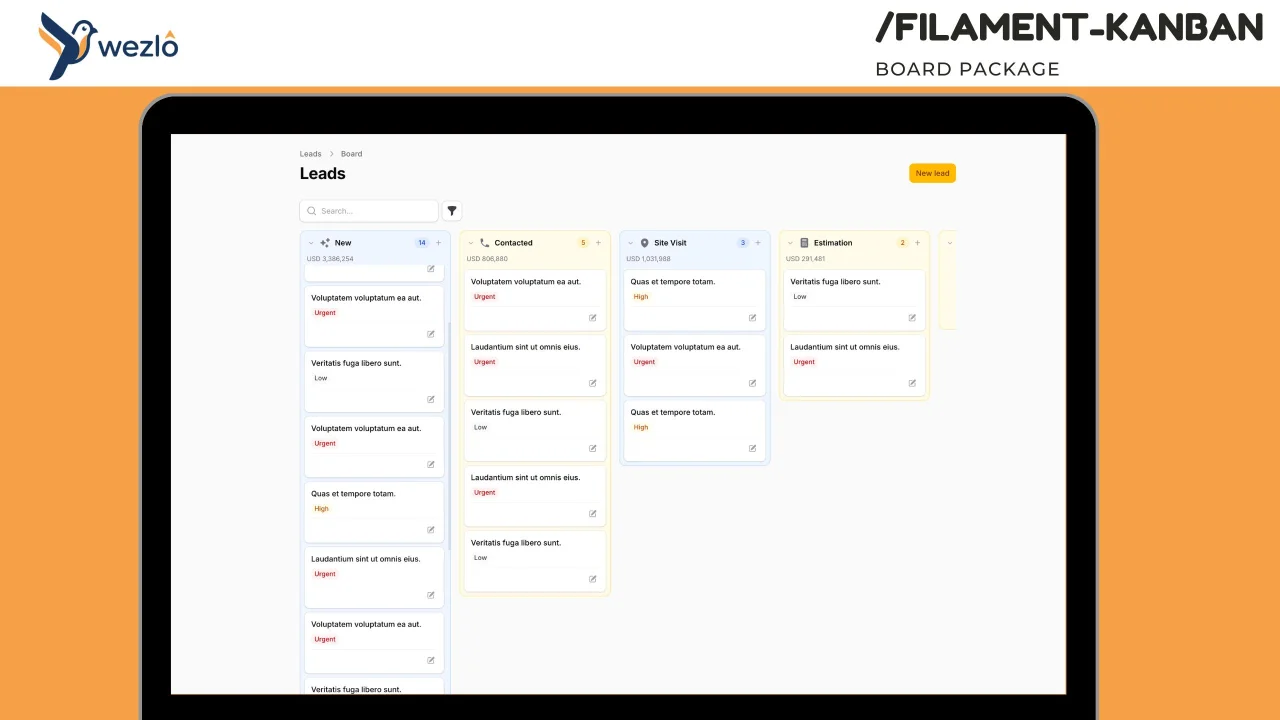

Easy Kanban Board plugin screenshot
Dark mode ready
Multilingual support
Supports v5.x

Easy Kanban Board by Mustafa Khaled

Community

An advanced Kanban Board package for Filament. Drop it into any Resource's List page to replace the table with a fully interactive board.

Tags: Developer Tool Tables
Supported versions:
5.x 4.x
Mustafa Khaled avatar Author: Mustafa Khaled

Package health

Automated checks of this plugin's Composer package

79 / 100
Security 68
Maintenance 88
Ecosystem 100
15 checks
  • Skipped: GitHub Actions pinned to SHA
  • Skipped: GitLab CI includes pinned to SHA
  • Passed: Open security advisories
  • Passed: Dependabot PR responsiveness — No open Dependabot PRs.
  • Skipped: Renovate MR responsiveness
  • Failed: Dependabot or Renovate configured — No dependency updater configuration found. View details on Plumb
  • Skipped: Dependency update cooldown configured
  • Failed: Provides a security policy — View details on Plumb
  • Passed: Abandoned or archived — No consulted source marks the package abandoned (packagist, github).
  • Warning: Commit and release recency — Low activity: last commit 181 days ago; last release 181 days ago.
  • Passed: composer.lock not committed by library — composer.lock is absent from the released dist archive.
  • Passed: Dist archive is lean
  • Passed: Current Laravel version supported — Package dependencies resolve together with current Laravel 13.0.
  • Passed: Current PHP version supported — Constraint ^8.2 supports current PHP 8.5.
  • Skipped: Current Symfony version supported
Third-party plugin. This is built by the community, not the Filament team. Filament does not review, endorse, or vet the security of plugins outside the filament/ namespace. Review the source and install at your own risk. Found malware or an unresolved security issue the author won't address? Report it .
Powered by Plumb Last scanned 1 month ago

Documentation

An advanced Kanban Board package for Filament. Drop it into any Resource's List page to replace the table with a fully interactive board.

#Requirements

  • PHP 8.3+
  • Laravel 13+
  • Filament 4+

#Features

  • Drag-and-drop cards between columns (SortableJS)
  • Enum-based or relationship-based columns
  • KanbanStatusEnum interface for defining transitions & WIP limits on the enum itself
  • Card click action (modal, slide-over, or custom)
  • Card footer actions (edit, delete, URL navigation, custom)
  • Column header actions (create with pre-filled status)
  • Filters dropdown with active count badge & reset
  • Search bar with relationship support
  • Collapsible columns (persisted in localStorage)
  • WIP limits with visual warnings and server-side enforcement
  • Column summaries (aggregates)
  • Empty state per column
  • Drag constraints (client-side + server-side)
  • canMove() callback for custom authorization
  • Resource policy authorization on every move
  • Loading indicator
  • Custom views (card, column, board)
  • Dark mode support
  • Accessibility (ARIA roles, labels, keyboard-friendly)
  • Publishable Blade views
  • Error notifications on failed moves

#Installation

composer require wezlo/filament-kanban

Register the plugin in your Panel Provider:

use Wezlo\FilamentKanban\FilamentKanbanPlugin;

->plugins([
    FilamentKanbanPlugin::make(),
])

#Quick Start

Add HasKanbanBoard to your Resource's List page and define kanban():

use Wezlo\FilamentKanban\Concerns\HasKanbanBoard;
use Wezlo\FilamentKanban\KanbanBoard;

class ListLeads extends ListRecords
{
    use HasKanbanBoard;

    protected static string $resource = LeadResource::class;

    public function kanban(KanbanBoard $kanban): KanbanBoard
    {
        return $kanban
            ->enumColumn('status', LeadStatus::class)
            ->cardTitle(fn ($record) => $record->title)
            ->cardDescription(fn ($record) => $record->assignee?->name);
    }
}

The board replaces the table. Columns are generated from your enum. The breadcrumb shows "Board" instead of "List".

#KanbanStatusEnum Interface

For full integration, implement KanbanStatusEnum on your enum. This lets you define allowed transitions and WIP limits directly on the enum -- no board configuration needed.

use Filament\Support\Contracts\HasIcon;
use Filament\Support\Icons\Heroicon;
use Wezlo\FilamentKanban\Contracts\KanbanStatusEnum;

enum LeadStatus: string implements HasIcon, KanbanStatusEnum
{
    case New = 'new';
    case Contacted = 'contacted';
    case SiteVisit = 'site_visit';
    case Negotiation = 'negotiation';
    case Won = 'won';
    case Lost = 'lost';

    // Required by HasLabel (via KanbanStatusEnum)
    public function getLabel(): string
    {
        return match ($this) {
            self::New => 'New',
            self::Contacted => 'Contacted',
            // ...
        };
    }

    // Required by HasColor (via KanbanStatusEnum)
    public function getColor(): string
    {
        return match ($this) {
            self::New => 'info',
            self::Contacted => 'warning',
            // ...
        };
    }

    // Optional: HasIcon
    public function getIcon(): Heroicon
    {
        return match ($this) {
            self::New => Heroicon::Sparkles,
            // ...
        };
    }

    // Define which statuses each status can transition to.
    // Return null to allow all transitions.
    public function getAllowedTransitions(): ?array
    {
        return match ($this) {
            self::New => [self::Contacted, self::Lost],
            self::Contacted => [self::SiteVisit, self::Lost],
            self::SiteVisit => [self::Negotiation, self::Lost],
            self::Negotiation => [self::Won, self::Lost],
            self::Won => null,  // no constraints
            self::Lost => null,
        };
    }

    // Set max cards per column. Return null for unlimited.
    public function getWipLimit(): ?int
    {
        return match ($this) {
            self::Negotiation => 10,
            default => null,
        };
    }
}

The board automatically reads these -- just use ->enumColumn('status', LeadStatus::class) and transitions + WIP limits are enforced both client-side and server-side.

Without the interface: Regular BackedEnum with HasLabel + HasColor still works. You just configure constraints on the board instead.

Explicit overrides: Board-level ->dragConstraints() and ->wipLimits() override enum values per column.

#Configuration

#Column Source

Enum-based (columns from a BackedEnum):

->enumColumn('status', LeadStatus::class)

Relationship-based (columns from a related model):

->relationshipColumn('stage', 'name', Stage::class, orderAttribute: 'sort_order')

#Card Content

->cardTitle(fn ($record) => $record->title)
->cardDescription(fn ($record) => $record->assignee?->name)
->cardBadges(fn ($record) => [
    ['label' => $record->priority->getLabel(), 'color' => $record->priority->getColor()],
])

#Card Click Action

Pass any Filament Action to fire when a card is clicked:

use Filament\Actions\Action;
use Filament\Infolists\Components\TextEntry;

->cardAction(
    Action::make('view')
        ->slideOver()
        ->schema([
            TextEntry::make('title'),
            TextEntry::make('status')->badge(),
        ])
        ->fillForm(fn ($record) => $record->toArray())
        ->modalSubmitAction(false)
        ->modalCancelActionLabel('Close')
)

Clicking opens the modal. Dragging still works -- the package distinguishes clicks from drags using SortableJS events.

Icon buttons at the bottom of each card. Actions with ->url() render as links, others use Livewire modals.

use Filament\Actions\Action;
use Filament\Support\Icons\Heroicon;

->cardFooterActions([
    Action::make('edit')
        ->icon(Heroicon::PencilSquare)
        ->color('gray')
        ->url(fn ($record) => LeadResource::getUrl('edit', ['record' => $record])),
    Action::make('delete')
        ->icon(Heroicon::Trash)
        ->color('danger')
        ->requiresConfirmation()
        ->action(fn ($record) => $record->delete()),
])

#Column Header Action

"+" button per column. The column value is pre-filled into the form.

use Filament\Actions\CreateAction;

->columnHeaderAction(CreateAction::make())

#Filters

Renders as a dropdown panel triggered by a filter icon next to the search bar. Shows active filter count as a badge.

use Filament\Forms\Components\Select;

->filters([
    Select::make('priority')
        ->options(LeadPriority::class)
        ->placeholder('All Priorities'),
    Select::make('assigned_to')
        ->relationship('assignee', 'name')
        ->placeholder('All Assignees'),
])
->filtersColumns(2) // grid columns inside the dropdown
->searchable(['title', 'client.user.name'])

Supports dot notation for relationship columns.

#Collapsible Columns

->collapsible()

State persisted per column in localStorage.

#WIP Limits

Define on the enum via KanbanStatusEnum::getWipLimit(), or on the board:

->wipLimits(['new' => 5, 'in_progress' => 10])
->defaultWipLimit(20)

The count badge turns red when over limit. Moves into over-limit columns are blocked server-side with a notification.

#Column Summaries

->columnSummary(function ($records, $column) {
    $total = $records->sum('estimated_budget');
    return $total > 0 ? 'SAR ' . number_format($total, 0) : null;
})

#Empty State

->emptyState('No leads', 'Drag leads here or create a new one')

#Drag Constraints

Define on the enum via KanbanStatusEnum::getAllowedTransitions(), or on the board:

->dragConstraints([
    'new' => [LeadStatus::Contacted, LeadStatus::Lost],
    'contacted' => [LeadStatus::SiteVisit, LeadStatus::Lost],
])

Enforced both client-side (SortableJS put function) and server-side (before DB update).

#Authorization

Resource policy: The package checks Resource::canEdit($record) before every move. Unauthorized moves show a danger notification.

canMove callback: Custom business logic:

->canMove(function ($record, $oldStatus, $newStatus) {
    if ($newStatus === 'won') {
        return auth()->user()->hasRole('project-manager');
    }
    return true;
})

Order of checks: Resource policy -> Drag constraints -> WIP limits -> canMove callback. First failure blocks the move.

#Move Callback

Run logic after a successful move:

->onRecordMoved(function ($record, $fromValue, $toValue) {
    activity()->performedOn($record)->log("Moved from {$fromValue} to {$toValue}");
})

#Query Customization

->modifyQueryUsing(fn ($query) => $query->where('company_id', auth()->user()->company_id))
->recordsPerColumn(50)
->excludeColumns([LeadStatus::Lost])

#Column Appearance

->columnWidth('320px')
->columnColor(fn ($column) => $column->color ?? 'gray')

#Custom Views

Override any view:

->cardView('leads.kanban.card')     // receives $record, $board, $column
->columnView('leads.kanban.column') // receives $column, $board
->boardView('leads.kanban.board')

Or publish all views:

php artisan vendor:publish --tag=filament-kanban-views

#Loading Indicator

Enabled by default. Shows a spinner overlay during Livewire updates.

->loading(false) // disable

#Custom Theme

If you have a custom Filament theme, add the package views to your @source directive:

@source '../../../../vendor/wezlo/filament-kanban/resources/views/**/*';

#Testing

php artisan test --filter=KanbanBoard

#License

MIT
