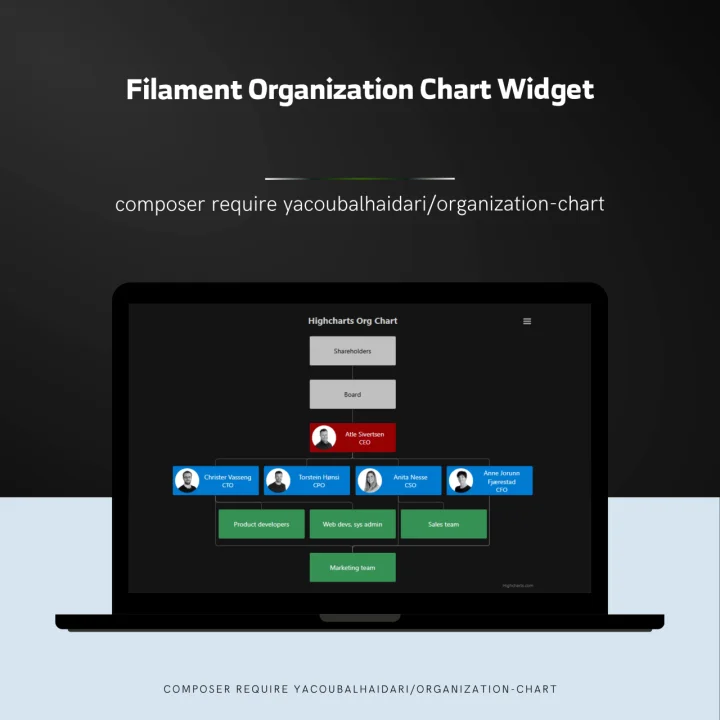

A powerful and elegant Filament widget plugin for creating interactive organizational charts. Built on top of Highcharts, this package provides a fluent API for visualizing your company's hierarchy with style.

#✨ Features

• 🎨 Beautiful & Interactive - Smooth, responsive charts with hover effects and animations
• 🏗️ Fluent Builder API - Intuitive, chainable methods for building complex hierarchies
• 👤 Employee Profiles - Support for profile images, titles, and custom styling
• 🎯 Fully Customizable - Control colors, layout, height, and orientation
• 📱 Responsive Design - Works seamlessly on desktop, tablet, and mobile
• 🌍 Multi-language - Built-in support for English and Arabic (easily extensible)
• ✅ Smart Validation - Automatic error checking and helpful debugging tools
• 🚀 Database Ready - Easily integrate with Eloquent models
• 🎨 Artisan Command - Quick scaffold widgets with make:organization-chart

#📋 Table of Contents

• Requirements
• Installation
• Quick Start
• Usage Examples
• API Reference
• Customization
• Building from Source
• Contributing
• License

#🔧 Requirements

• PHP: 8.1 or higher
• Laravel: 10.x or 11.x or 12.x
• Filament: 3.x or 4.x
• Composer: 2.x

#📦 Installation

#Step 1: Install via Composer

composer require yacoubalhaidari/organization-chart

#Step 2: Publish Assets

The package assets are automatically published during installation. If needed, you can republish them:

php artisan filament:assets

#Step 3: Create Your First Widget

Use the artisan command to scaffold a new organization chart widget:

php artisan make:organization-chart CompanyOrgChart

This creates a ready-to-use widget at app/Filament/Widgets/CompanyOrgChartWidget.php.

#Step 4: Register the Widget

Add the widget to your Filament Panel Provider (e.g., app/Providers/Filament/AdminPanelProvider.php):

use App\Filament\Widgets\CompanyOrgChartWidget;

public function panel(Panel $panel): Panel
{
    return $panel
        ->widgets([
            CompanyOrgChartWidget::class,
        ]);
}

That's it! 🎉 Visit your Filament dashboard to see your organization chart.

#🚀 Quick Start

#Using the Artisan Command (Recommended)

Generate a widget with pre-configured examples:

php artisan make:organization-chart MyCompany

This creates a widget with:

• 4 executive-level positions (CEO, CTO, CFO, COO)
• Profile images and custom colors
• Commented examples for departments and teams
• Best practices and proper structure

#Manual Widget Creation

Alternatively, create a widget manually:

<?php

namespace App\Filament\Widgets;

use YacoubAlhaidari\OrganizationChart\OrganizationChartWidget;
use YacoubAlhaidari\OrganizationChart\OrganizationChartBuilder;

class CompanyOrgChart extends OrganizationChartWidget
{
    protected string $view = 'organization-chart::widget-without-description';

    public function mount(): void
    {
        $builder = OrganizationChartBuilder::make()
            ->title('Company Structure')
            ->height(700)
            ->inverted(true);

        $builder->executiveLevel([
            ['CEO', 'CTO'],
            ['CEO', 'CFO'],
        ]);

        $builder->executiveNodes([
            [
                'id' => 'CEO',
                'title' => 'Chief Executive Officer',
                'name' => 'Your Name',
                'color' => '#6366f1',
            ],
            [
                'id' => 'CTO',
                'title' => 'Chief Technology Officer',
                'name' => 'Tech Director',
                'color' => '#3b82f6',
            ],
            [
                'id' => 'CFO',
                'title' => 'Chief Financial Officer',
                'name' => 'Finance Director',
                'color' => '#10b981',
            ],
        ]);

        $this->builder($builder);
    }
}

#💡 Usage Examples

#Example 1: Simple Hierarchy

public function mount(): void
{
    $builder = OrganizationChartBuilder::make()
        ->title('Our Company')
        ->height(600)
        ->inverted(true)

        ->executiveLevel([
            ['CEO', 'CTO'],
            ['CEO', 'CFO'],
            ['CEO', 'COO'],
        ])

        ->executiveNodes([
            [
                'id' => 'CEO',
                'title' => 'Chief Executive Officer',
                'name' => 'Sarah Johnson',
                'image' => 'https://i.pravatar.cc/150?img=1',
                'color' => '#6366f1',
            ],
            [
                'id' => 'CTO',
                'title' => 'CTO',
                'name' => 'Michael Chen',
                'image' => 'https://i.pravatar.cc/150?img=2',
                'color' => '#3b82f6',
            ],
            [
                'id' => 'CFO',
                'title' => 'CFO',
                'name' => 'Emily Davis',
                'color' => '#10b981',
            ],
            [
                'id' => 'COO',
                'title' => 'COO',
                'name' => 'David Martinez',
                'color' => '#f59e0b',
            ],
        ]);

    $this->builder($builder);
}

#Example 2: Multi-Level Organization

public function mount(): void
{
    $builder = OrganizationChartBuilder::make()
        ->title('Complete Organization')
        ->height(800)

        // Executives
        ->executiveLevel([
            ['CEO', 'CTO'],
            ['CEO', 'VP Sales'],
        ])
        ->executiveNodes([
            ['id' => 'CEO', 'name' => 'CEO', 'title' => 'Chief Executive Officer'],
            ['id' => 'CTO', 'name' => 'CTO', 'color' => '#3b82f6'],
            ['id' => 'VP Sales', 'name' => 'VP Sales', 'color' => '#10b981'],
        ])

        // Departments
        ->departments([
            ['CTO', 'Engineering Dept'],
            ['CTO', 'Product Dept'],
            ['VP Sales', 'Sales Dept'],
        ])
        ->departmentNodes([
            ['id' => 'Engineering Dept', 'name' => 'Engineering'],
            ['id' => 'Product Dept', 'name' => 'Product'],
            ['id' => 'Sales Dept', 'name' => 'Sales'],
        ])

        // Teams
        ->teams([
            ['Engineering Dept', 'Frontend Team'],
            ['Engineering Dept', 'Backend Team'],
        ])
        ->teamNodes([
            ['id' => 'Frontend Team', 'name' => 'Frontend'],
            ['id' => 'Backend Team', 'name' => 'Backend'],
        ]);

    $this->builder($builder);
}

#Example 3: Database Integration

public function mount(): void
{
    $executives = Employee::where('level', 'executive')
        ->with('manager')
        ->get();

    $builder = OrganizationChartBuilder::make()
        ->title('Company Hierarchy')
        ->height(700)

        ->executiveLevel(
            $executives->map(fn($e) => [
                $e->manager?->name ?? 'Board',
                $e->name
            ])->toArray()
        )

        ->executiveNodes(
            $executives->map(fn($e) => [
                'id' => $e->name,
                'title' => $e->job_title,
                'name' => $e->full_name,
                'image' => $e->avatar_url,
                'color' => $e->department_color,
            ])->toArray()
        );

    $this->builder($builder);
}

#Example 4: Horizontal Layout

public function mount(): void
{
    $builder = OrganizationChartBuilder::make()
        ->title('Horizontal Organization')
        ->height(500)
        ->inverted(false) // Horizontal layout

        ->executiveLevel([
            ['Board', 'President'],
            ['President', 'VP Operations'],
            ['President', 'VP Marketing'],
        ])

        ->executiveNodes([
            ['id' => 'Board', 'name' => 'Board of Directors'],
            ['id' => 'President', 'name' => 'President'],
            ['id' => 'VP Operations', 'name' => 'VP Operations'],
            ['id' => 'VP Marketing', 'name' => 'VP Marketing'],
        ]);

    $this->builder($builder);
}

#📚 API Reference

#Artisan Commands

Command Usage:

# Create a widget named CompanyOrgChartWidget
php artisan make:organization-chart CompanyOrgChart

# Create a widget named TeamStructureWidget
php artisan make:organization-chart TeamStructure

# Widget suffix is added automatically
php artisan make:organization-chart Sales  # Creates SalesWidget.php

#Builder Methods

#Configuration Methods

Example:

$builder->title('My Company')
    ->height(800)
    ->inverted(true);

#Hierarchy Definition Methods

Relationship Format: [['parentId', 'childId'], ...]

Example:

$builder->executiveLevel([
    ['CEO', 'CTO'],
    ['CEO', 'CFO'],
])
->departments([
    ['CTO', 'Engineering Dept'],
    ['CFO', 'Finance Dept'],
]);

#Node Definition Methods

Node Properties:

Example:

$builder->executiveNodes([
    [
        'id' => 'CEO',
        'name' => 'John Smith',
        'title' => 'Chief Executive Officer',
        'image' => 'https://example.com/ceo.jpg',
        'color' => '#6366f1',
    ],
]);

#Validation Methods

Example:

$builder = OrganizationChartBuilder::make()
    ->executiveLevel([['CEO', 'CTO']])
    ->executiveNodes([
        ['id' => 'CEO', 'name' => 'CEO'],
    ]);

$validation = $builder->validate();
// Returns: ['valid' => false, 'errors' => ['Missing node: CTO']]

$missing = $builder->getMissingNodes();
// Returns: ['CTO']

#🎨 Customization

#Widget Views

Use the alternative view without description:

protected string $view = 'organization-chart::widget-without-description';

#Custom Colors

->executiveNodes([
    ['id' => 'CEO', 'name' => 'CEO', 'color' => '#6366f1'], // Indigo
    ['id' => 'CTO', 'name' => 'CTO', 'color' => '#3b82f6'], // Blue
    ['id' => 'CFO', 'name' => 'CFO', 'color' => '#10b981'], // Green
])

#Profile Images

->executiveNodes([
    [
        'id' => 'CEO',
        'name' => 'Sarah Johnson',
        'image' => asset('storage/avatars/ceo.jpg'),
    ],
])

#Translations

Publish and customize translation files:

php artisan vendor:publish --tag=organization-chart-translations

Edit in:

• lang/vendor/organization-chart/en/widget.php (English)
• lang/vendor/organization-chart/ar/widget.php (Arabic)

#Widget Column Span

Control widget width:

class CompanyOrgChart extends OrganizationChartWidget
{
    protected int | string | array $columnSpan = 'full'; // Full width

    // Or specific spans:
    // protected int | string | array $columnSpan = 2;
}

#🛠️ Building from Source

If you're contributing or want to build assets from source:

#Prerequisites

• Node.js 16.x or higher
• NPM 8.x or higher

#Build Steps

# Navigate to package directory
cd packages/organization-chart

# Install dependencies
npm install

# Build assets (production)
npm run build

# Or watch for changes (development)
npm run dev

#Build Commands

#After Building

Publish the updated assets to your Filament application:

# From your Laravel project root
php artisan filament:assets

#Project Structure

packages/organization-chart/
├── src/
│   ├── Commands/
│   │   └── MakeOrganizationChartCommand.php
│   ├── OrganizationChartServiceProvider.php
│   ├── OrganizationChartWidget.php
│   └── OrganizationChartBuilder.php
├── resources/
│   ├── js/
│   │   └── organization-chart.js         # Source JavaScript
│   ├── css/
│   │   └── organization-chart.css        # Source CSS
│   ├── dist/                             # Compiled assets
│   │   ├── organization-chart.js
│   │   └── organization-chart.css
│   ├── views/
│   │   ├── widget.blade.php
│   │   └── widget-without-description.blade.php
│   └── lang/
│       ├── en/widget.php
│       └── ar/widget.php
├── composer.json
├── package.json
├── build.js                              # esbuild configuration
├── postcss.config.js                     # PostCSS configuration
└── README.md

#🐛 Troubleshooting

#Chart Not Displaying

Problem: Widget shows but chart is blank.

Solutions:

1. Clear cache: php artisan optimize:clear
2. Republish assets: php artisan filament:assets
3. Check browser console for JavaScript errors
4. Verify Highcharts is loaded

#Missing Nodes Error

Problem: Relationships reference undefined IDs.

Solution: Use validation to find issues:

$missing = $builder->getMissingNodes();
// Returns array of missing node IDs

#Assets Not Loading

Problem: Styles or JavaScript not working.

Solutions:

1. Re-publish: php artisan filament:assets --force
2. Clear browser cache (Ctrl+F5)
3. Check public directory permissions
4. Verify assets exist in public/js/yacoubalhaidari/ and public/css/yacoubalhaidari/

#🤝 Contributing

Contributions are welcome! Here's how you can help:

#Development Setup

1. Fork the repository
2. Clone your fork
3. Install dependencies: composer install && npm install
4. Make your changes
5. Build assets: npm run build
6. Test your changes
7. Submit a pull request

#Guidelines

• Follow PSR-12 coding standards
• Write clear commit messages
• Add tests for new features
• Update documentation as needed
• Ensure assets build without errors

#Reporting Issues

Please open an issue on GitHub with:

• Clear description of the problem
• Steps to reproduce
• Expected vs actual behavior
• Environment details (PHP, Laravel, Filament versions)

#📄 License

This package is open-sourced software licensed under the MIT License.

#👤 Author

Yacoub Al-haidari

• Email: [email protected]
• GitHub: @yacoubalhaidari

#🙏 Credits

Built With:

• Filament - The elegant admin panel framework
• Highcharts - Interactive charting library
• Laravel - The PHP framework for web artisans

#🔗 Links

• Packagist
• GitHub Repository
• Filament Documentation
• Highcharts Org Chart Docs

#⭐ Support

If you find this package helpful, please consider:

• ⭐ Starring the repository
• 🐛 Reporting issues
• 💡 Suggesting new features
• 📖 Improving documentation
• 🔀 Contributing code

Made with ❤️ for the Filament community
