Draw arrows, rectangles, ellipses, lines, freehand pen strokes, a highlighter and text over any image in a Filament 5 panel, without touching the file. The annotations are a separate, tiny JSON layer in their own table: the original image is never modified, the markup can be edited or removed at any time, and the same layer can be shown read-only anywhere, in the panel or on your public site.

• Non-destructive. The file stays byte-for-byte what was uploaded. Delete the layer and you have the original.

• A real editor. Eight tools, eight colours, three stroke widths, undo/redo, move and recolour a selected shape, touch and pen support, keyboard shortcuts.

• Works with what you have. A Spatie Media Library item, a path in a FileUpload column, or anything you teach it through a small ImageSource contract.

• Safe by construction. Everything the browser sends is sanitised on save (shape types, coordinates, colours, lengths) and the renderer builds SVG with createElementNS and textContent only, never innerHTML.

• Screenshots

• Requirements

• Installation

• Usage

• The editor

• Image sources

• Authorization

• Configuration

• Stored format

• Events and cleanup

• Front end

• Pro

• Gotchas

• Demo

• Translations

• AI agents

• Testing

#Screenshots

Dark mode:

#Requirements

• PHP 8.3+
• Laravel 12 or 13
• Filament 5

Optional: spatie/laravel-medialibrary and filament/spatie-laravel-media-library-plugin for Media Library images.

#Installation

composer require asignua/filament-image-annotations
php artisan vendor:publish --tag=filament-image-annotations-migrations
php artisan migrate
php artisan filament:assets

The service provider is auto-discovered. Registering the plugin on a panel is optional (it adds nothing yet):

use Asignua\FilamentImageAnnotations\ImageAnnotationsPlugin;

$panel->plugin(ImageAnnotationsPlugin::make());

The editor and the viewer are small Alpine components that are only downloaded by a page that uses them. Optionally publish the config (--tag=filament-image-annotations-config) and the translations (--tag=filament-image-annotations-translations).

#Usage

Every entry point takes the image through ->image(...): an ImageSource, a Spatie Media, any class you registered (see Image sources), or a Closure returning one (it may take the usual $record). A Closure returning null means "no image here" and the button hides itself.

#AnnotateImageAction: a button that opens the editor

use Asignua\FilamentImageAnnotations\Actions\AnnotateImageAction;

// table record action, header action or infolist action: it is a normal Filament action
AnnotateImageAction::make()->image(fn (Post $record) => $record->getFirstMedia('photos'));

It opens a full-screen modal with the editor, pre-filled with the stored layer; Save annotations writes it. The button is hidden for a record without an image and for a user who may not annotate it. Inside an ActionGroup it works like any other row action.

#AnnotatedImageEntry: read-only view

use Asignua\FilamentImageAnnotations\Infolists\Components\AnnotatedImageEntry;

AnnotatedImageEntry::make('photo')
    ->image(fn (Post $record) => $record->getFirstMedia('photos'))
    ->alt('Front door');

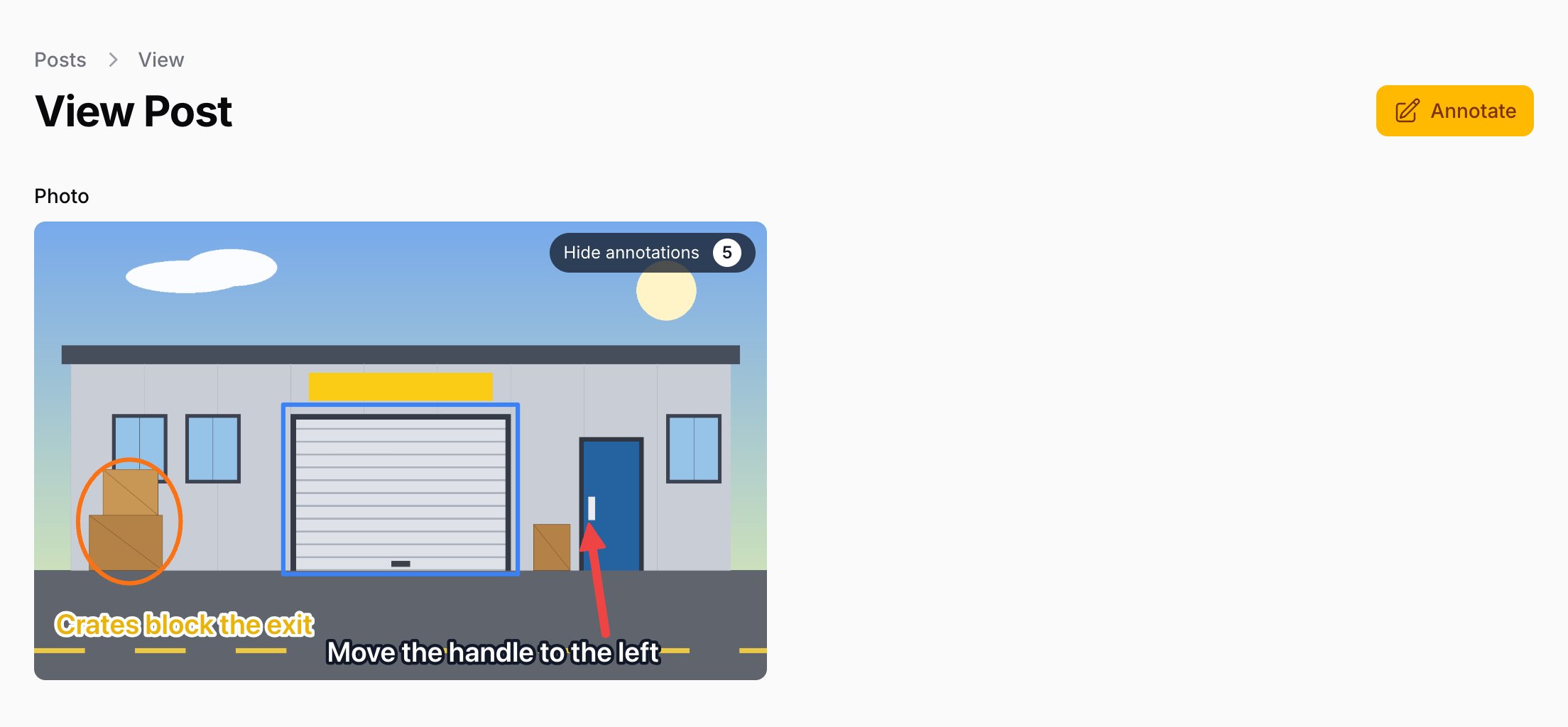

The picture with the layer on top and a Show / Hide annotations toggle (with a count). With no layer, or for a viewer who may not see it, it is the plain picture. Without ->image() the entry's own state is the image.

#<x-image-annotations::image>: anywhere

<x-image-annotations::image :image="$media" alt="Front door" class="rounded" />

The same viewer for any Blade view, see Front end.

#AnnotatedUpload: an Annotate button per file of an upload

use Asignua\FilamentImageAnnotations\AnnotatedUpload;

AnnotatedUpload::make(
    FileUpload::make('image')->image()->disk('public')->directory('notes'),
)

AnnotatedUpload::make(
    SpatieMediaLibraryFileUpload::make('photos')->collection('photos')->multiple()->image(),
)

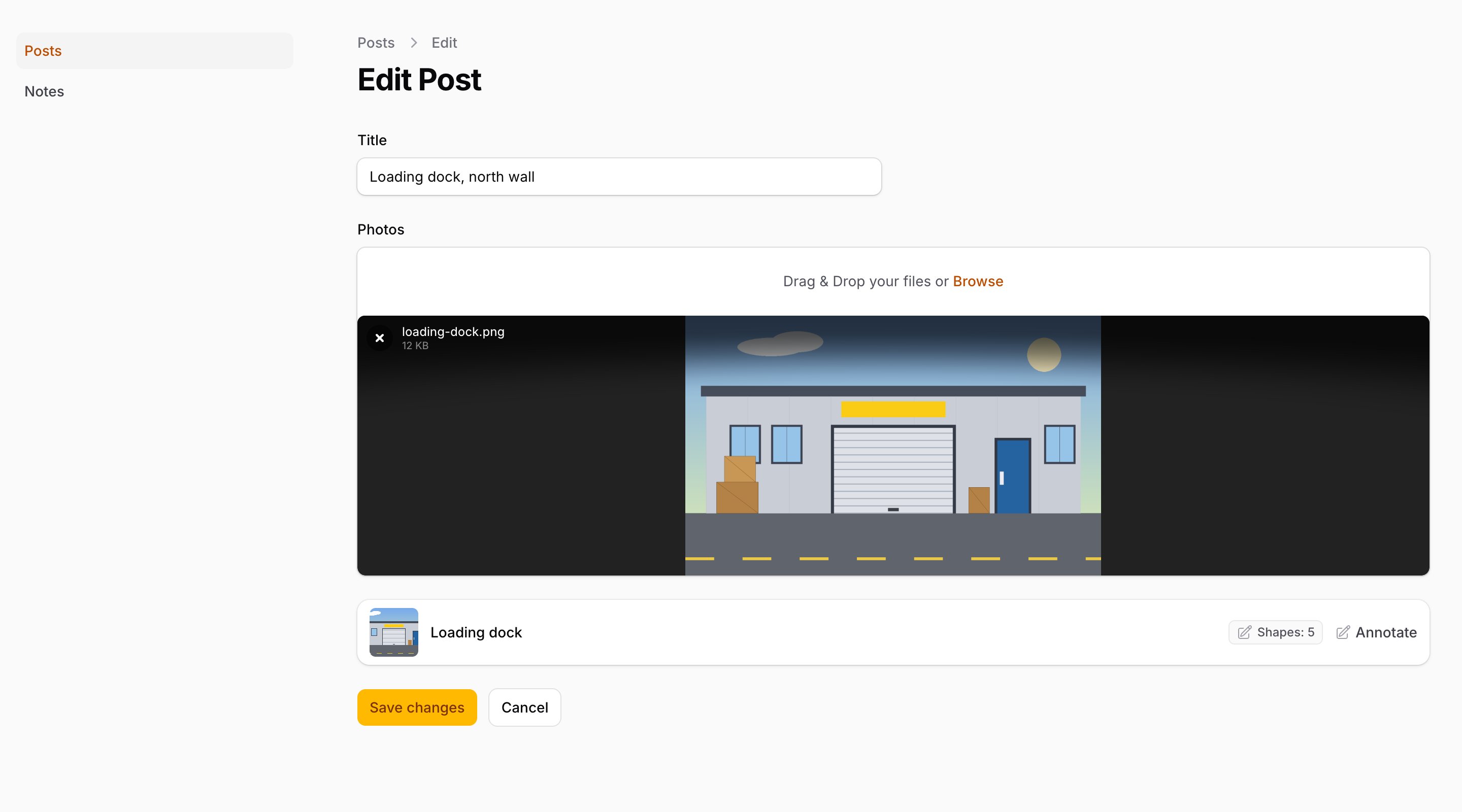

A list appears under the upload: one row per stored image with a thumbnail, the name, the number of shapes (when there are any) and an Annotate button that opens the same editor as the action. Files that are not images are skipped.

• With SpatieMediaLibraryFileUpload the layer belongs to the media item; with a plain FileUpload it belongs to the record and is keyed by the stored file path.
• A file that is not stored yet cannot be annotated: a fresh upload, or any file on a create page. Its button is disabled with the hint Save the record first.
• Annotating saves immediately. Save annotations in the editor writes the layer through the store right away, it does not wait for the form's own Save. (The form's Save button is only about the files.)
• When a file is removed from a plain FileUpload and the record is saved, the layer of that path is forgotten. A Media item's layer goes together with the media item. If the same path is removed and uploaded again in one edit, the old layer stays (the save cannot tell the two files apart), clear it in the editor if that matters.
• Hidden per file for a user who may not annotate that image; a ->hidden() upload hides the list too.
• AnnotatedUpload::make() returns a plain Group with the upload and the list as siblings (put the result in components([...]), configure the upload before wrapping it, and set layout on the returned group).

#ImageAnnotator: the editor as a form field

use Asignua\FilamentImageAnnotations\Forms\Components\ImageAnnotator;

ImageAnnotator::make('annotations')->image(fn (Post $record) => $record->getFirstMedia('photos'));

The state is the layer ({"v":1,"items":[...]}) and is sanitised on dehydrate. Use it in a custom page, wizard step or your own action. Saving is on you: call ImageAnnotations::store()->save($source, $user, $state).

#Reading and writing from code

use Asignua\FilamentImageAnnotations\ImageAnnotations;

ImageAnnotations::for($media);                       // the layer for the signed-in user, or null (nothing drawn / not allowed)
ImageAnnotations::store()->shapes($source, $user);   // always a sanitised layer, empty when there is none
ImageAnnotations::store()->save($source, $user, $shapes);   // throws AuthorizationException; an empty layer deletes the row
ImageAnnotations::store()->forget($source);          // removes the layer, no authorisation check

#The editor

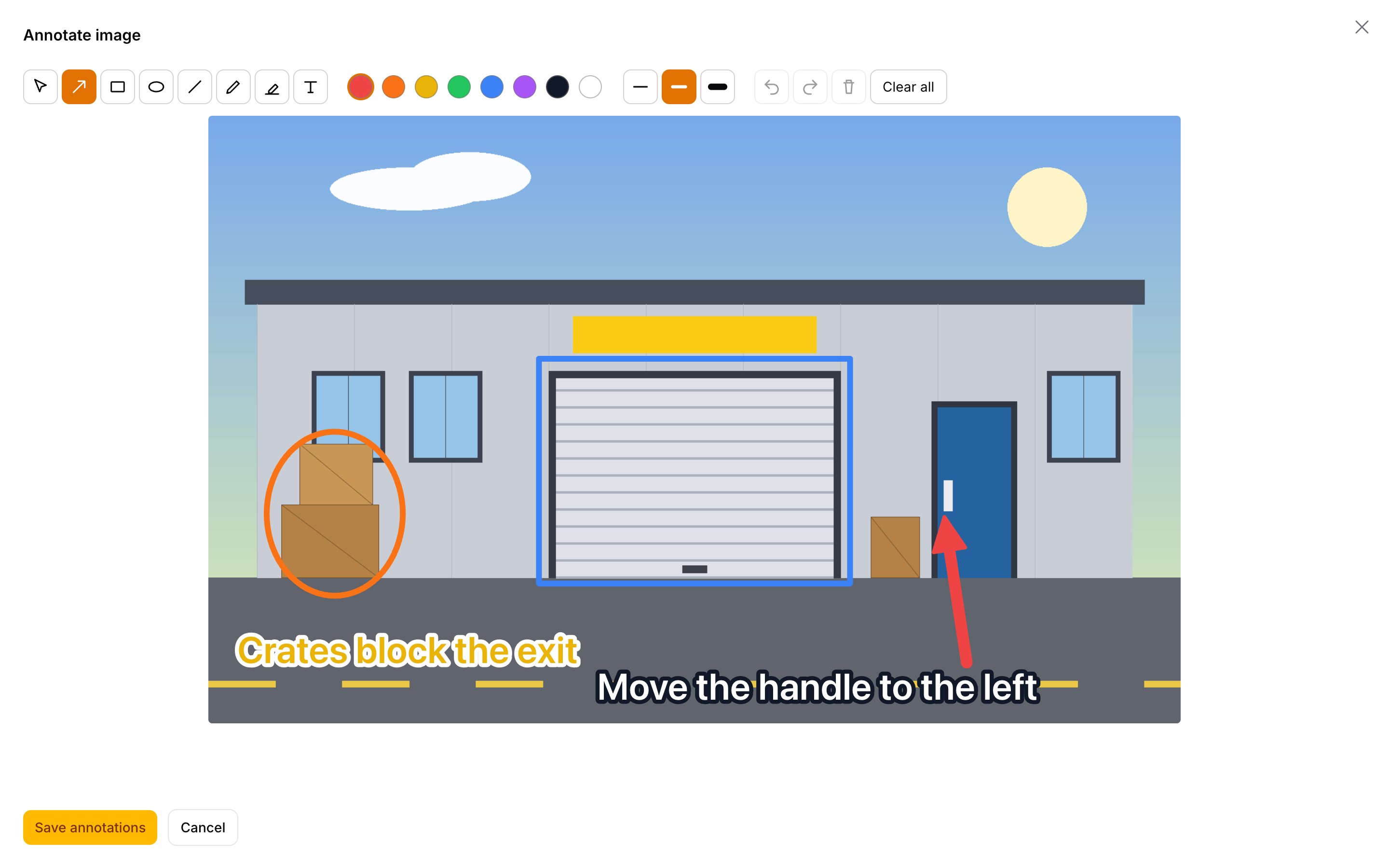

Eight colours, three stroke widths, Clear all (click twice to confirm). Mouse, touch and stylus all work; every button has an accessible name and aria-pressed.

#Image sources

An ImageSource tells the plugin which image it is, where it lives and who may touch it:

interface ImageSource
{
    public function annotatable(): Model;   // the row owner of the morph relation
    public function key(): ?string;         // null for an image that is its own model (Media); a path for a file in a column
    public function url(): string;          // displayable URL of the ORIGINAL image
    public function canView(?Authenticatable $user): bool;
    public function canAnnotate(?Authenticatable $user): bool;
}

Built in: Sources\MediaImageSource (a Spatie Media) and Sources\ModelPathImageSource ($record, $path, $disk). Both can be told how to build the URL (a signed or CDN URL, a private disk):

MediaImageSource::urlUsing(fn (Media $media) => $media->getTemporaryUrl(now()->addMinutes(10)));
ModelPathImageSource::urlUsing(fn (Model $record, string $path, ?string $disk) => Storage::disk($disk)->temporaryUrl($path, now()->addMinutes(10)));

Teach the plugin your own image class, so ->image($thing) and <x-image-annotations::image :image="$thing"> accept it:

use Asignua\FilamentImageAnnotations\Support\ImageSources;

app(ImageSources::class)->register(Attachment::class, fn (Attachment $attachment) => new AttachmentImageSource($attachment));

Extend Sources\AbstractImageSource to get the standard authorization (below) and implement owner().

#Authorization

The default rule, for every source:

• A guest never sees or edits annotations.
• A signed-in user needs the owner model's policy when there is one: view to see the layer, update to change it. For a Media item the owner is the model the file belongs to.
• With no policy registered for the owner model, any signed-in user may view and annotate. The plugin does not know your panel's access rules; register a policy (or the override below) if annotating should be limited.

Replace the rule globally, once, for example in a service provider:

use Asignua\FilamentImageAnnotations\ImageAnnotations;

ImageAnnotations::authorizeUsing(function (?Authenticatable $user, ImageSource $source, string $ability): bool {
    // $ability is 'view' or 'annotate'
    return $user?->can('manage-photos') ?? false;
});

AnnotationStore::save() checks canAnnotate itself and throws AuthorizationException, so a forged request cannot bypass the buttons being hidden.

#Configuration

config/filament-image-annotations.php:

#Stored format

One row per image: annotatable (morph), key (the file path for a file in a column, NULL for an image that is its own model), user_id (the last editor, no foreign key), shapes (JSON, written unescaped so Cyrillic text stays readable).

{
  "v": 1,
  "items": [
    {"id": "k3J9aZ0pQw", "type": "arrow", "pts": [[0.12, 0.2], [0.38, 0.45]], "color": "red", "width": 4},
    {"id": "t1", "type": "text", "pts": [[0.1, 0.62]], "color": "#ffffff", "width": 4, "text": "Check this"}
  ]
}

Coordinates are normalised 0..1 relative to the image, so the layer fits any size the image is shown at. Types: arrow, line, rect, ellipse (two points), pen, highlight (2 to limits.points points), text (one point and a non-empty text).

Support\ShapeSanitizer runs on everything that is saved or displayed, it never throws and drops what it cannot fix:

• unknown types, wrong point counts and non-numeric coordinates are dropped; coordinates are clamped to 0..1 and rounded;
• colour is a palette name or #rrggbb (stored lowercase), anything else becomes the first palette colour;
• width is an integer 1..24; text has control characters stripped, is trimmed and cut to limits.text; arrays or objects where a string belongs are dropped;
• ids are [A-Za-z0-9_-]{1,40} and unique, otherwise regenerated; unknown keys are removed; at most limits.shapes items.

Text is never HTML-escaped on the way in, it is stored as typed and rendered with textContent, so <script> stays the literal text <script>.

#Events and cleanup

• Events\AnnotationSaved and Events\AnnotationDeleted ($annotation, $source, $user) are fired by the store.
• An empty layer deletes the row (and save() returns a fresh, unsaved model).
• Deleting a Spatie Media item removes its layer (also with a custom media model).
• For images that are paths in a model's column, add the trait to the model so its rows go with it:

use Asignua\FilamentImageAnnotations\Concerns\HasImageAnnotations;

class Note extends Model
{
    use HasImageAnnotations;   // $note->imageAnnotations(); rows removed on forceDelete()
}

The trait removes the rows on a hard delete only; a soft-deleted record can come back with its annotations.

#Front end

<x-image-annotations::image> and AnnotatedImageEntry render the image, an <svg> overlay and a toggle. The layer is passed as escaped JSON in a data-layers attribute ([{key, label, color, items}]) and drawn by an Alpine component. With two or more layers a chip per layer appears next to the show/hide toggle.

On a public page the viewer needs Alpine and Filament's asset route (the component is fetched with x-load from Filament's assets, run php artisan filament:assets). Without them the plain image renders: no overlay, nothing broken. The component also checks canView for the current user; without permission it renders the plain image too, and the layer is not put in the page at all.

If your public pages cache HTML for everybody, remember the layer is rendered per viewer.

#Pro

A paid Pro package is planned, built on the hooks already here (AnnotationStore is a singleton you can rebind, and user_id is kept for it):

• Layers per author: each reviewer draws on their own layer and you switch them on and off.
• Numbered pins with comment threads attached to a point of the image.
• Chat integration: annotate the image attachments of asignua/filament-chat-pro conversations.

Coming soon.

#Extending

The free package is the base of the Pro one (layers per author, numbered pins with threads); these are the seams, all inert until something uses them.

Layers. AnnotationStore::layers($source, $user) returns a list<Support\Layer> (key, label, color, items, editable, meta). Free returns one layer, default, editable when the user may annotate. Rebind the store to return more: the viewer draws every layer with a chip each, and AnnotateImageAction passes the non-editable ones to the editor as read-only underlays (drawn below, not selectable, never saved into the state; visibility toggles are client-side only). Use them on a hand-built field with ImageAnnotator::make('x')->underlays([...])->layerKey('mine'). ImageAnnotations::layersFor($image) is the permission-aware list of non-empty layers.

Tools. The toolbar comes from config tools (default: all but pin) or per field: ImageAnnotator::make('x')->tools(['select', 'arrow', 'pin']).

Pins. Shape pin: one point plus an integer n (1..999). The sanitizer drops a pin with a missing or out-of-range n and renumbers duplicates within a layer to max + 1. A pin renders as a filled circle with a white number and carries data-id and data-pin on its SVG group. The pin tool (key N) places the highest number + 1.

JS events (bubbling CustomEvents, nothing in the free package listens to them):

document.addEventListener('image-annotations:pin-click', (e) => openThread(e.detail.layer, e.detail.n))

Side panels. ImageAnnotations::addPanel(fn (ImageSource $source, string $context) => $html) adds HTML next to the editor canvas ($context = 'editor') and next to the annotated image in the viewer ('viewer'); return null for no panel. The panels and the canvas share a container marked data-ia-scope, so a panel can tell which events belong to its image. Nothing changes visually while no panel is registered.

Saved event. After a successful save AnnotateImageAction dispatches the Livewire event image-annotations:saved (ImageAnnotations::SAVED_EVENT) with image = ImageAnnotations::imageId($source), a non-secret sha1("morph class|id|key"). Anything on the page that shows annotation data (a pro panel, your own Livewire component) listens with #[On('image-annotations:saved')]; the Pro pin panel always re-reads, you may compare the id to filter.

Hidden by default. A layer whose meta['hidden'] is true starts switched off (its chip is still there).

#Gotchas

• Nothing happens when I open the editor on a page of my own. Run php artisan filament:assets; the editor is loaded on demand from Filament's asset route.
• Create page: the Annotate button is disabled. By design, there is no record to hang the layer on yet. Save first.
• Annotations are saved but the form's Save was not pressed. By design, see AnnotatedUpload.
• Everybody can annotate. Without a policy on the owner model any signed-in user may; see Authorization.
• Highlighter on a dark image. It uses its own colour with transparency (no multiply blend), pick a bright colour.
• Private disks. Storage::url() of a private file is not displayable; set urlUsing() to a temporary URL.
• HasImageAnnotations and soft deletes. The rows stay until the record is force-deleted.

#Demo

A workbench is included (a post with a Media Library photo and a note with a plain FileUpload, both with the editor):

vendor/bin/testbench workbench:build      # sqlite db, migrations, seeder and the public/storage link (do not run db:seed on top: duplicate user)
vendor/bin/testbench filament:assets
APP_URL=http://localhost:8000 vendor/bin/testbench serve --host=0.0.0.0 --port=8000

APP_URL must carry the port you serve on, or image URLs point to the wrong place.

Log in at /admin as alice@example.com / password (bob@example.com may not touch Alice's post). Inside Docker, publish a port for the container first.

#Translations

The interface ships in English, Ukrainian, German, Spanish, French, Italian, Dutch, Polish, Brazilian Portuguese and Turkish under the filament-image-annotations::filament-image-annotations namespace. A test keeps every language in step with the English keys. Override a string by publishing the translations (--tag=filament-image-annotations-translations) and editing the copy in lang/vendor/filament-image-annotations.

#AI agents

The package ships Laravel Boost guidelines (resources/boost/guidelines/core.blade.php) so a coding agent wires it up correctly.

#Testing

composer install
vendor/bin/phpunit
vendor/bin/phpstan analyse --memory-limit=1G
vendor/bin/pint --test
npm ci && npm run build   # only when resources/js changed; resources/dist is committed

#Changelog

See CHANGELOG.md.

#License

The MIT License (MIT). See LICENSE.md.
