A Filament plugin for labeling images — draw rectangles and polygons, name them, color them, all inside one form field. Built on Annotorious, with a polymorphic persistence layer so any Eloquent model can keep its annotations.

#Features

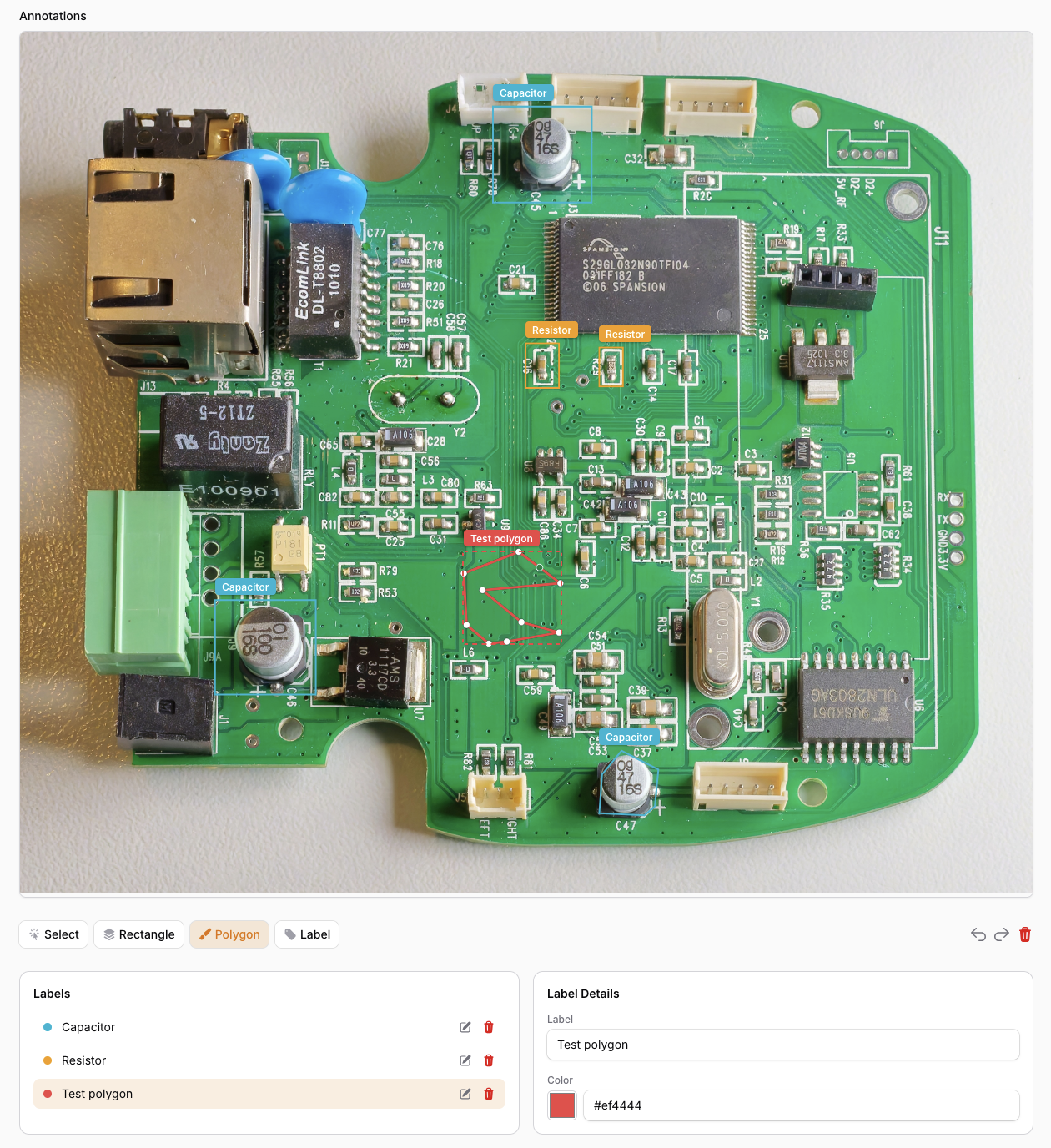

• Annotation canvas with a toolbar under the image: Select / Rectangle / Polygon / Label, plus undo / redo / delete
• Built-in Labels panel — every distinct label gets a row with a color dot, edit and delete
• Built-in Label Details panel — rename a label (renames every shape using it) and pick its color
• Label pills rendered over the shapes on the canvas
• Two-way selection: click a shape to load its label, click a row to select the shape
• Polymorphic annotations table — attach annotations to any model
• HasAnnotations trait with syncAnnotations() for easy CRUD
• Optional entity links — link a shape to a record in your own app (a Person, a Building, anything): an inline entity picker in the Label Details panel searches across the types you configure, the linked entity shows as a chip (optionally clickable — a template Action opens its URL or modal), and the first link seeds an empty label with the record's display string
• Optional automatic annotation — a model overrides autoAnnotate() to turn an image into suggestions (any backend you like: local model, detection API, LLM); the editor gets an Annotate button, optionally auto-running when the image loads
• Works with private/public file storage, Filament v5 compatible, translations (en/de/pl)

#Installation

composer require zielu92/filament-image-labeler
php artisan migrate

#How It Works

ImageLabel is a self-contained form field. Its Livewire state is an array of shapes:

[
    {
        "id": "uuid",
        "target": {
            "selector": {
                "type": "RECTANGLE",
                "geometry": { "x": 693, "y": 88, "w": 256, "h": 160, "bounds": { "minX": 693, "minY": 88, "maxX": 949, "maxY": 248 } }
            }
        },
        "label": "Microcontroller",
        "color": "#ef4444",
        "entity": { "type": "App\\Models\\Part", "id": 12 }
    }
]

• target.selector is Annotorious' internal geometry — pixel coordinates in the image's natural size; polygons use { "type": "POLYGON", "geometry": { "points": [[x, y], ...], "bounds": {...} } }. Store it as-is, it round-trips.
• label is free text; shapes sharing a label share a row in the Labels panel.
• color is assigned deterministically from a hash of the label name and can be overridden per label in the UI. Colors are denormalized onto each shape, so the state array is all you need to persist.
• entity is the entity link — a reference to one record — and only appears on fields configured with ->linkableTo().

#Usage

#1. Add the trait to your model

use Zielu92\FilamentImageLabeler\Concerns\HasAnnotations;

class Photo extends Model
{
    use HasAnnotations;
}

This gives your model $photo->annotations() (morphMany), $photo->syncAnnotations(array $data) and automatic cascade delete.

#2. Add the field to your Filament form

use Zielu92\FilamentImageLabeler\Forms\Components\ImageLabel;

ImageLabel::make('annotations')
    ->image(fn ($get, $record) => /* resolve the current photo URL */)
    ->live()
    ->columnSpanFull()

The image closure is re-evaluated whenever the form renders, so the canvas follows the form: make the photo field ->live() and resolve the URL from its state (this also covers freshly uploaded, not-yet-saved files):

->image(fn ($get, $record) => $record?->exists
    ? $record->getFirstMedia()?->getTemporaryUrl(now()->addHour())
    : ($get('photo') instanceof \Livewire\Features\SupportFileUploads\TemporaryUploadedFile
        ? $get('photo')->temporaryUrl()
        : null))

As a fallback the field also reacts to a Livewire::dispatch('image-labeler-update-url', $url) event. Pass the field's state path as a second argument (..., $url, 'annotations')) when a page renders multiple ImageLabel fields, so only the matching one updates.

#Keyboard

In edit mode: Delete / Backspace removes the selected shape(s), Esc deselects or cancels an in-progress polygon, and Ctrl/Cmd+Z / Ctrl/Cmd+Y (or the toolbar arrows) undo/redo.

#3. Persist on save, hydrate on edit

Map the field state onto syncAnnotations() — the app decides what goes into metadata:

/** @param array<array{id: string, target: array, label: string, color: string, entity?: array{type: string, id: int|string}|null}> $shapes */
function annotationRows(array $shapes): array
{
    return collect($shapes)->map(fn ($s) => [
        'annotation_id' => $s['id'],
        'geometry' => $s['target'],
        'metadata' => ['label' => $s['label'] ?? '', 'color' => $s['color'] ?? null],
    ])->all();
}

// CreatePhoto.php
class CreatePhoto extends CreateRecord
{
    protected function mutateFormDataBeforeCreate(array $data): array
    {
        $this->annotationData = annotationRows($data['annotations'] ?? []);
        unset($data['annotations']);

        return $data;
    }

    protected function afterCreate(): void
    {
        $this->record->syncAnnotations($this->annotationData);
    }
}

// EditPhoto.php
use Zielu92\FilamentImageLabeler\Support\AnnotationColor;

class EditPhoto extends EditRecord
{
    protected function mutateFormDataBeforeFill(array $data): array
    {
        $data['annotations'] = $this->record->annotations()->orderBy('id')->get()
            ->map(fn ($ann) => [
                'id' => $ann->annotation_id,
                'target' => $ann->geometry,
                'label' => $ann->metadata['label'] ?? '',
                'color' => $ann->metadata['color'] ?? AnnotationColor::forLabel($ann->metadata['label'] ?? ''),
            ])
            ->values()
            ->all();

        return $data;
    }

    protected function mutateFormDataBeforeSave(array $data): array
    {
        $this->annotationData = annotationRows($data['annotations'] ?? []);
        unset($data['annotations']);

        return $data;
    }

    protected function afterSave(): void
    {
        $this->record->syncAnnotations($this->annotationData);
    }
}

AnnotationColor::forLabel('USB Port') returns the same color the canvas picks for a label by default — use it when your metadata was saved without an explicit color.

#The syncAnnotations Method

$model->syncAnnotations([
    [
        'annotation_id' => 'uuid-from-canvas',
        'geometry' => ['selector' => ['type' => 'RECTANGLE', 'geometry' => ['x' => 693, 'y' => 88, 'w' => 256, 'h' => 160, 'bounds' => ['minX' => 693, 'minY' => 88, 'maxX' => 949, 'maxY' => 248]]]],
        'metadata' => ['label' => 'Microcontroller', 'color' => '#ef4444'],
    ],
]);

Behavior: creates missing rows (matched by annotation_id), updates existing ones, deletes rows whose annotation_id is absent, [] clears all. geometry accepts an array or JSON string; metadata is nullable and yours to shape. Entity links: pass entity_type + entity_id as a pair; an explicit null clears the link, omitting the keys leaves the stored link untouched, and a half pair (one set, one null) is coerced to a full clear.

#Entity links

A shape can point at one record from your own app — a Person, a Building, a Place — beside its free-text label. The link survives label renames and lives in its own entity_type / entity_id columns, never in metadata. Everything below is opt-in: no linkableTo() means no picker, no chip, no links.

#1. Enable the feature

Declare which record types a field allows. Each entry is a LinkableType:

use Zielu92\FilamentImageLabeler\Forms\Components\ImageLabel;
use Zielu92\FilamentImageLabeler\Support\LinkableType;

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->linkableTo([
        // Display convention: name column, else title, else "#<id>".
        LinkableType::make(Building::class),

        // Custom display: you must also tell the picker which columns to search.
        LinkableType::make(Person::class)
            ->display(fn (Person $person): string => "{$person->first_name} {$person->last_name}")
            ->searchBy(['first_name', 'last_name']),

        // Override the type heading shown above grouped picker results, and
        // allow creating a record from the picker with a form schema
        // (pass your Filament resource's form here if you have one).
        LinkableType::make(Vendor::class)
            ->typeLabel('Supplier')
            ->creatable(fn () => [TextInput::make('name')->required()]),
    ])
    ->columnSpanFull()

linkableTo() also takes a Closure returning the array, so the allow-list can depend on the record or the user.

#2. Link shapes in the editor

With the feature on, the Label Details panel grows an entity picker — an inline search box (not a modal):

• Type to search every linkable type at once; results are grouped under their type heading. Selecting a row links it to the currently selected shape; there is no link without an active shape.
• Linking seeds the shape's label with the record's display string only when the label is empty, and colors it like any typed label.
• A linked shape shows an entity chip (type + display string) with an unlink × on the right; relinking a shape replaces its link.
• creatable() types add a "Create <Type>" row in the picker; the new record binds automatically. Which types offer creation is controlled field-wide with ->allowEntityCreation(): true (default) enables every type that has a schema, false disables all, and an array of model classes enables exactly those.

#3. Persist and hydrate the link

The field state carries entity: ['type' => ..., 'id' => ...] per shape. Map it onto the syncAnnotations keys on save:

/** @param array<array{id: string, target: array, label: string, color: string, entity?: array{type: string, id: int|string}|null}> $shapes */
function annotationRows(array $shapes): array
{
    return collect($shapes)->map(fn ($s) => [
        'annotation_id' => $s['id'],
        'geometry' => $s['target'],
        'metadata' => ['label' => $s['label'] ?? '', 'color' => $s['color'] ?? null],
        'entity_type' => $s['entity']['type'] ?? null,
        'entity_id' => $s['entity']['id'] ?? null,
    ])->all();
}

And put it back into the shape on edit so the chip reappears:

$data['annotations'] = $this->record->annotations()->orderBy('id')->get()
    ->map(fn ($ann) => [
        'id' => $ann->annotation_id,
        'target' => $ann->geometry,
        'label' => $ann->metadata['label'] ?? '',
        'color' => $ann->metadata['color'] ?? AnnotationColor::forLabel($ann->metadata['label'] ?? ''),
        'entity' => $ann->entity_type ? ['type' => $ann->entity_type, 'id' => $ann->entity_id] : null,
    ])
    ->values()
    ->all();

syncAnnotations() treats the pair like any other key: null clears a link, omitting the keys leaves the stored link untouched, and a half pair (one set, one null) coerces to a full clear.

#4. Clean up dangling links

Add the LinkableEntity trait to every linkable model. Deleting a record then nulls all links pointing at it (the shape and its label survive):

use Zielu92\FilamentImageLabeler\Concerns\LinkableEntity;

class Person extends Model
{
    use LinkableEntity;
}

Without the trait links dangle — the editor still renders them (with a class-name fallback) but nothing cleans them up. Stale links to types removed from linkableTo() keep rendering too; only the picker stops offering them.

#5. Run an action from the link (entity link action)

Give linked entities a click action — open a record's show page, or run a modal right inside the editor — with one template Filament\Actions\Action whose closures receive the linked record:

use Filament\Actions\Action;

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->linkableTo([LinkableType::make(Place::class)])
    ->entityAction(
        Action::make('viewPlace')
            ->url(fn (Place $record): ?string => route('places.show', $record))
    )

How it behaves:

• The chip is the action. In edit mode, when the action is visible for the record the whole entity chip becomes clickable (mouse + Enter/Space); the unlink × keeps its own slot and stops propagation. Return false from ->visible(fn ($record) => ...) for a record and the chip is plain — no affordance to run.
• URL or modal. A non-null ->url() for the record navigates in the same tab; without a URL the Action's own modal config (->schema(), ->modalHeading(), ->modalContent(), …) opens over the editor. A single template covers every type — branch on the record inside the closures. Action::make() needs a name for identification; the editor registers it internally as openLinkedEntity (one action per field).
• Auto-created and auto-annotated links pick up the same affordance as soon as their display strings resolve.

Read-only mode. On a readOnly() field there is no Details panel or chip, so the affordance moves to the canvas: a single click on a linked, actionable shape runs its action (navigate, or open the modal); other shapes keep the hover-tooltip-only behavior. Link the field up exactly as in edit mode — the click handler activates on shapes whose link resolves to a visible action:

ImageLabel::make('annotations')
    ->image(fn ($record) => $record->getFirstMedia()?->getUrl())
    ->readOnly()
    ->dehydrated(false)
    ->linkableTo([LinkableType::make(Place::class)])
    ->entityAction(
        Action::make('viewPlace')
            ->url(fn (Place $place): ?string => route('places.show', $place))
            // Or an in-editor modal instead of a URL:
            // ->schema(fn (Place $place) => [ /* read-only display components */ ])
            // ->modalHeading(fn (Place $place) => $place->name)
    )
    ->columnSpanFull()

Guards. Clicks are re-validated server-side every mount: the type must be in linkableTo() and the record must still exist — a violation throws, and stale links simply render with no affordance. The resolved url() is cached per session mount, so a mid-session rename shows the old href until reload; the modal path is always fresh (the record is re-resolved on open).

#Automatic annotation

Let a model label its own images. The package defines only that it happens and what shape the answer has — how you find things in the image is entirely yours (local model, hosted detector, vision LLM, hardcoded test data).

1. Override the hook on your model. The contract: return a list of AnnotationSuggestion DTOs (label + normalized box/polygon). The trait default returns null, which keeps the feature off:

use Zielu92\FilamentImageLabeler\Concerns\HasAnnotations;
use Zielu92\FilamentImageLabeler\Support\AnnotationSuggestion;

class Photo extends Model
{
    use HasAnnotations;

    /**
     * @return list<AnnotationSuggestion>|null  one DTO per finding
     */
    public function autoAnnotate(string $url, ?string $path): ?array
    {
        // $url  - the image URL the editor currently displays
        // $path - a local temp file for that URL, when the package could fetch it (null otherwise)
        // Coordinates are normalized: fractions of the image's width/height.

        return [
            AnnotationSuggestion::box('USB Port', 0.42, 0.11, 0.18, 0.09),
            AnnotationSuggestion::polygon('Heatsink', [[0.1, 0.1], [0.3, 0.12], [0.28, 0.4]]),
        ];
    }
}

AnnotationSuggestion is the DTO the package defines (src/Support/AnnotationSuggestion.php): immutable, validates its geometry, exposes label + normalized points. Build it with ::box($label, $x, $y, $w, $h) / ::polygon($label, [[x, y], ...]). A plain array ['label' => ..., 'box' => ...] is accepted too — the package converts it with AnnotationSuggestion::fromArray() — so JSON straight from a detection API works without ceremony.

2. Choose what does the thinking — it's your method, per model. The package never calls anything itself, so every model can annotate completely differently: a YOLO endpoint here, a face-detection service there, an LLM somewhere else, an ONNX runtime in-process, a python sidecar, hardcoded fixtures in tests. Models share a strategy via a trait/base class, or branch inside the hook by whatever you know about the record:

use Illuminate\Support\Facades\Http;

class Photo extends Model
{
    use HasAnnotations;

    public function autoAnnotate(string $url, ?string $path): ?array
    {
        return match (true) {
            $this->isPortrait() => $this->detectFaces($url),
            $this->isHardware() => $this->detectParts($url),
            default => null,                       // this photo opts out
        };
    }

    protected function detectParts(string $url): ?array
    {
        // Any HTTP detector will do - map its response into suggestions.
        $detections = Http::timeout(20)->post('https://detector.test/v1/detect', [
            'image' => $url,
            'classes' => $this->source?->part_labels ?? ['*'],
        ])->json('detections', []);

        return array_map(
            fn (array $d): AnnotationSuggestion => AnnotationSuggestion::box(
                label: $d['class'],
                x: $d['bbox']['x1'],
                y: $d['bbox']['y1'],
                w: $d['bbox']['x2'] - $d['bbox']['x1'],
                h: $d['bbox']['y2'] - $d['bbox']['y1'],
            ),
            $detections,
        );
    }
}

Return null (or an empty array) when there is nothing to report — the field simply gets no shapes.

3. Enable the field:

ImageLabel::make('annotations')
    ->image(/* ... */)
    ->enableAutoAnnotation()   // arms the feature for this field
    ->autoAnnotateOnLoad()     // optional: run when the image appears
    ->autoAnnotateButton(false) // optional: hide the toolbar button (load-only)
    ->columnSpanFull()

What happens: clicking Annotate (or image load, with autoAnnotateOnLoad()) calls your autoAnnotate(), then the editor turns every suggestion into a normal shape right there on the canvas — the normalized points are scaled against the image the browser displays, so placement works for any URL, including protected/private ones. From there it is manual work: keep editing, undo, save through syncAnnotations() as usual. Results are never silently replaced on re-run; new shapes are appended (a multiple(false) field replaces).

Notes:

• The button renders only when the field is enabled and the record actually overrides the hook; read-only fields never annotate.
• Execution is synchronous with a spinner; a slow backend can hit request timeouts — that's your method's contract to keep snappy (queued execution may come later).
• If your method throws, the editor shows the error under the toolbar and leaves your shapes untouched.
• $path: the package hands your method a local file when it can get one without requesting your own server — plain paths, public /storage/... URLs, remote http(s) downloads (max 20 MB). Same-host URLs (e.g. Livewire's local upload preview route) yield null; write your method so the URL alone is enough when that matters.
• Security: remote $path downloads refuse destinations that resolve to private, loopback, link-local (e.g. the cloud metadata address 169.254.169.254) or reserved IP ranges, and never follow redirects — so an app that builds image URLs from user-controlled state can't turn the fetch into an SSRF probe. If your images genuinely live on an internal host, opt in via config('filament-image-labeler.allow_private_image_hosts') (publishable config file, env IMAGE_LABELER_ALLOW_PRIVATE_IMAGE_HOSTS). Results are also discarded if the image is swapped or cleared mid-request.

#ImageLabel Configuration

#Read-only display

To show a saved photo's annotations without editing — e.g. on a view page or anywhere a form field fits — hydrate the same state and mark the field read-only:

ImageLabel::make('annotations')
    ->image(fn ($record) => $record->getFirstMedia()?->getUrl())
    ->readOnly()
    ->dehydrated(false)
    ->columnSpanFull()

Shapes are drawn in their label colors; hovering a shape shows a tooltip with its label and color. No drawing, selection, or panels — except that an entity link action turns a single click on a linked shape into a navigate-or-modal.

In edit mode the canvas, toolbar and the Labels / Label Details panels appear only while an image is set — the field owns label state internally, no repeater wiring needed.

#Testing

public function test_sync_creates_annotations(): void
{
    $photo = Photo::factory()->create();

    $photo->syncAnnotations([
        [
            'annotation_id' => 'ann-1',
            'geometry' => ['selector' => ['type' => 'RECTANGLE', 'geometry' => ['x' => 10, 'y' => 20, 'w' => 100, 'h' => 50, 'bounds' => ['minX' => 10, 'minY' => 20, 'maxX' => 110, 'maxY' => 70]]]],
            'metadata' => ['label' => 'Person'],
        ],
    ]);

    $this->assertCount(1, $photo->annotations);
    $this->assertEquals('Person', $photo->annotations->first()->metadata['label']);
}

#Changelog

Please see CHANGELOG for more information on what has changed recently.

#Credits

This package uses Annotorious for the image annotation canvas, licensed under the BSD 3-Clause License.

#License

The MIT License (MIT). Please see License File for more information.
