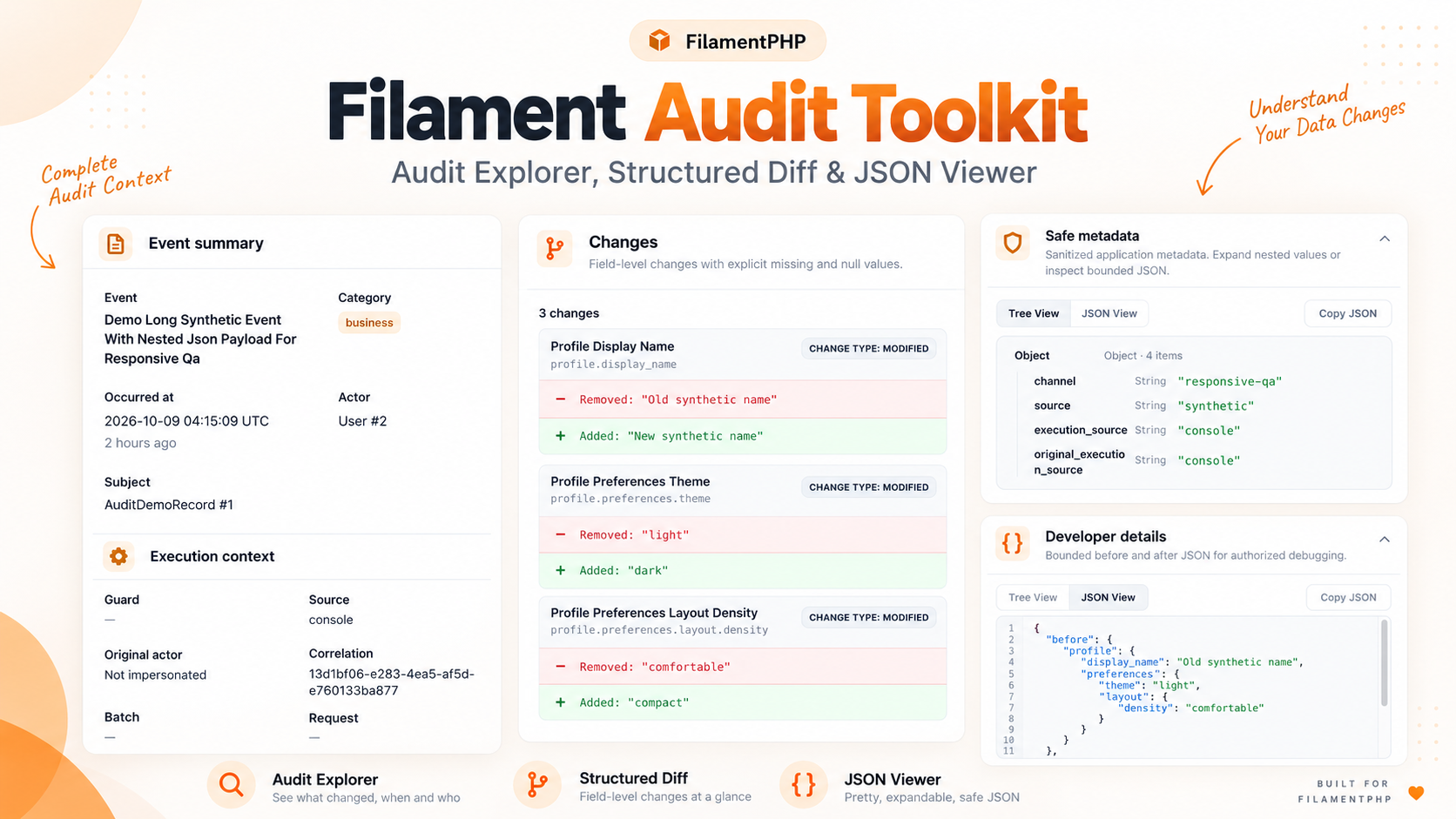

A read-only audit explorer for FilamentPHP with structured diffs, JSON inspection, and record history.

digit7s/filament-audit-toolkit adds a focused, read-only audit UI to Filament 5 applications using digit7s/laravel-audit-toolkit. It does not replace the Laravel package, write audit events, or require a second audit store.

#Key Features

• Audit Explorer with search, filters, pagination, actor, subject, source, and occurrence context.
• Audit Detail with bounded structured before/after changes and developer JSON inspection.
• Reusable, subject-scoped Record History relation manager.
• Unified, Split, and Fields diff presentations.
• Structured JSON Tree View and JSON View with bounded copy support.
• Runtime diff-style switching, scoped to the current Livewire component.
• Original actor / impersonation attribution with independent authorization.
• Panel-specific, deny-by-default authorization callbacks.
• Responsive light/dark rendering using package-owned Filament CSS assets.

#Requirements

• PHP ^8.5
• Laravel 13 and digit7s/laravel-audit-toolkit:^0.1
• Filament ^5.9
• Livewire 4 through Filament

#Installation

Install the plugin and its Laravel audit engine from Packagist:

composer require digit7s/filament-audit-toolkit

The Laravel package owns the audit table. Publish its configuration and migrations and migrate before opening the panel:

php artisan vendor:publish --tag=audit-toolkit-config
php artisan vendor:publish --tag=audit-toolkit-migrations
php artisan migrate

Laravel and Filament discover both service providers automatically. Run php artisan filament:assets when publishing Filament assets for a deployed application.

For sibling-checkout development, see CONTRIBUTING.md. Normal consumers do not need path repositories or development aliases.

#Panel Plugin Registration

Register FilamentAuditToolkitPlugin explicitly in every panel that should expose the explorer:

use Digit7s\FilamentAuditToolkit\FilamentAuditToolkitPlugin;

->plugin(
    FilamentAuditToolkitPlugin::make()
        ->authorization(
            viewAny: fn (?object $user): bool => $user?->can('viewAnyAuditEvents') ?? false,
            view: fn ($event, ?object $user): bool => $user?->can('viewAuditEvent') ?? false,
            viewRawValues: fn ($event, ?object $user): bool => $user?->can('viewAuditValues') ?? false,
            viewSubjectHistory: fn ($record, ?object $user): bool => $user?->can('viewAuditHistory', $record) ?? false,
            viewOriginalActor: fn ($event, ?object $user): bool => $user?->can('viewAuditImpersonation', $event) ?? false,
        ),
)

The plugin class is Digit7s\FilamentAuditToolkit\FilamentAuditToolkitPlugin. Its service provider is Digit7s\FilamentAuditToolkit\FilamentAuditServiceProvider.

#Authorization

Authorization is deny-by-default and is stored per registered panel. The active panel's guard supplies the callback user, so multiple panels may use different guards and policies. Navigation visibility is not authorization: resource queries, detail routes, raw-value projections, and history mounting enforce the callbacks server-side.

If viewRawValues is omitted, safe value presentation follows view. Safe values have already passed the Laravel package's storage-time privacy filtering; this plugin cannot recover excluded fields.

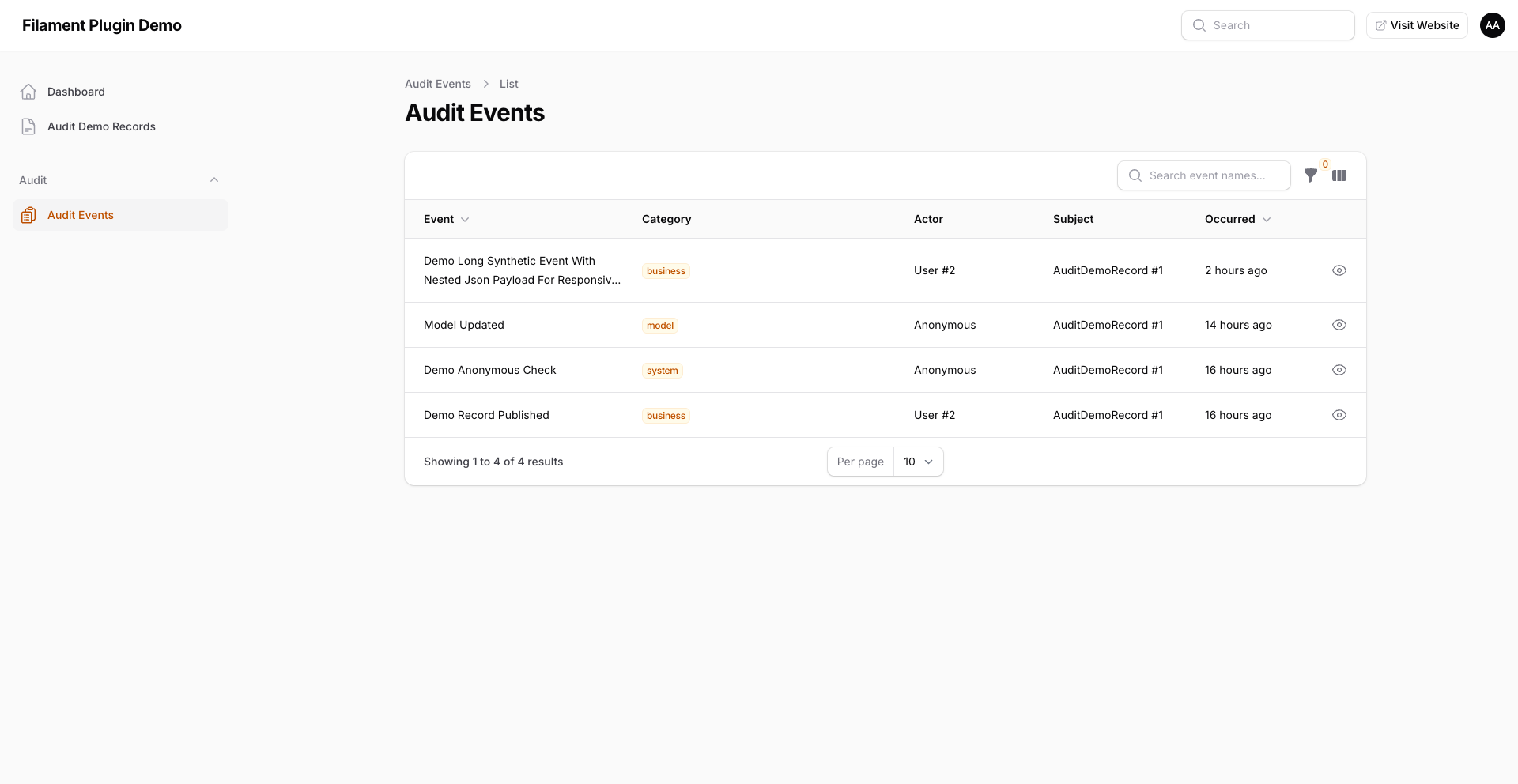

#Audit Explorer

Digit7s\FilamentAuditToolkit\Resources\AuditEventResource provides a paginated, read-only table with event-name search, event/category/date filters, actor and subject references, occurrence timestamps, and optional source, request, correlation, batch, and original-actor columns. Event names and the eye action link only to authorized detail views.

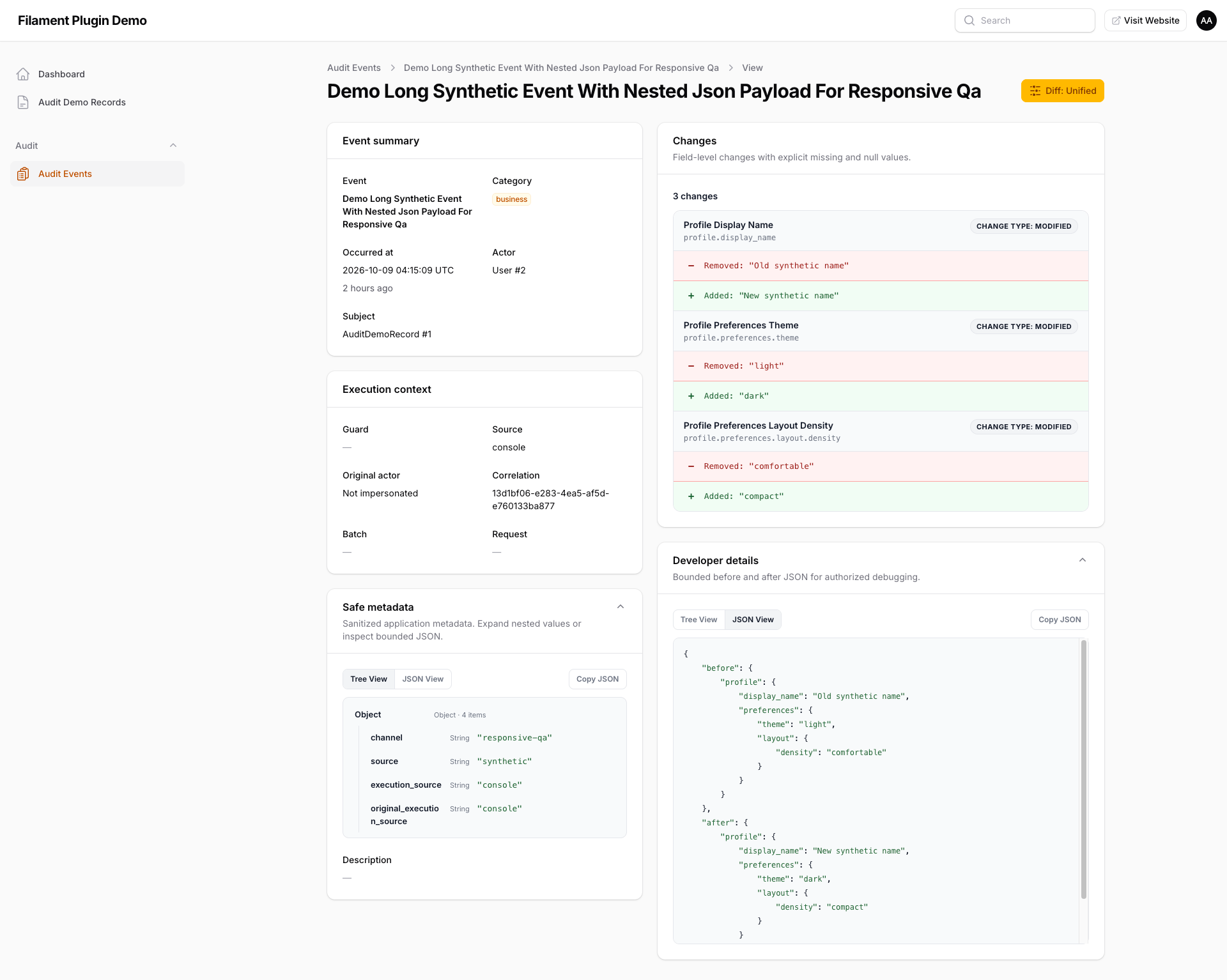

#Audit Detail

The detail page is Digit7s\FilamentAuditToolkit\Resources\AuditEventResource\Pages\ViewAuditEvent. It presents event summary, execution context, safe metadata, bounded field changes, and authorized developer details. Long event names wrap safely and exact timestamps are shown in UTC with relative context.

#Record History

Add AuditHistoryRelationManager to a resource whose model uses the core package's Auditable concern:

use Digit7s\FilamentAuditToolkit\RelationManagers\AuditHistoryRelationManager;

public static function getRelations(): array
{
    return [AuditHistoryRelationManager::class];
}

The relation is polymorphic, subject-scoped, paginated, and read-only. It shows event, actor, source, timestamp, and an escaped before/after summary. It checks viewSubjectHistory before mounting and still requires viewRawValues for value display.

#Structured Diff Viewer

The DiffBuilder and DiffViewerEntry use one bounded representation with three presentations:

• unified: compact additions and removals with textual + and − indicators.
• split: responsive Before and After columns.
• fields: administrator-friendly cards with humanized labels and technical paths.

Nested associative values become deterministic dotted paths. Lists compare by numeric index; move detection is intentionally not attempted. Missing values are [missing], explicit null remains null, and depth, entry, array-size, and display-length limits produce visible omitted/truncated markers.

#Structured JSON Viewer

Safe Metadata and authorized Developer Details use the bounded JsonViewerBuilder. Tree View exposes expandable object/array nodes; JSON View shows the same sanitized projection as indented syntax-highlighted JSON. Strings, numbers, booleans, null, empty values, and omission markers retain their type semantics. Copy JSON is available only to an authorized viewer and never includes excluded data.

#Diff Configuration and Runtime Switching

Configure global defaults in published config/filament-audit-toolkit.php:

'diff' => [
    'default_style' => 'unified',
    'available_styles' => ['unified', 'split', 'fields'],
    'allow_style_switching' => false,
    'max_depth' => 5,
    'max_entries' => 100,
    'max_value_length' => 2000,
    'max_array_elements' => 100,
],
'json_viewer' => [
    'default_mode' => 'tree',
    'max_depth' => 5,
    'max_entries' => 200,
    'max_value_length' => 2000,
    'allow_copy' => true,
],

Panel-level methods on FilamentAuditToolkitPlugin are:

FilamentAuditToolkitPlugin::make()
    ->diffStyle('split')
    ->availableDiffStyles(['unified', 'split'])
    ->allowDiffStyleSwitching();

Runtime selection is validated against enabled built-in styles, is component-local, and is never persisted. The Audit Detail page and Record History relation expose the native Livewire action only when switching is enabled.

#Configuration

The package configuration controls navigation grouping/sort, diff styles and bounds, JSON viewer mode and bounds, and copy support. The plugin does not publish a second database configuration or migration. The Laravel core package remains the source of audit storage and privacy policy.

#Security and Read-only Behavior

The plugin provides no edit, delete, bulk-delete, clear-all, restore/revert, retention, or pruning actions. It is a read-only presentation layer for v0.1.0; automated retention and pruning are not available. Future releases may add controlled retention policies, dry-run cleanup, and protected event handling.

Built-in views use escaped Filament/Blade rendering and package-owned assets. Authorization callbacks must be configured for every panel. A passing test suite is not a production security certification, and database-level immutability is not guaranteed by either package.

#Troubleshooting

• If the audit table is missing, publish the core migration and run php artisan migrate.
• If the Explorer is forbidden, configure viewAny and view for the active panel.
• If safe or raw values are hidden, configure the appropriate callback; storage-time allowlists cannot be bypassed.
• If subject history is forbidden, configure viewSubjectHistory and confirm the host resource authorizes the subject.
• If assets are missing after deployment, run php artisan filament:assets.

#Related Laravel Core Package

The backend package is digit7s/laravel-audit-toolkit. It works without Filament and provides recording, Eloquent auditing, privacy filtering, attribution context, migrations, and the AuditQuery contract.

#Contributing, Security and License

Run composer validate --no-check-publish, composer check-platform-reqs, composer lint, composer analyse, and composer test before submitting changes. See CONTRIBUTING.md, SECURITY.md, and RELEASE_CHECKLIST.md.

MIT licensed. See LICENSE.
