Header

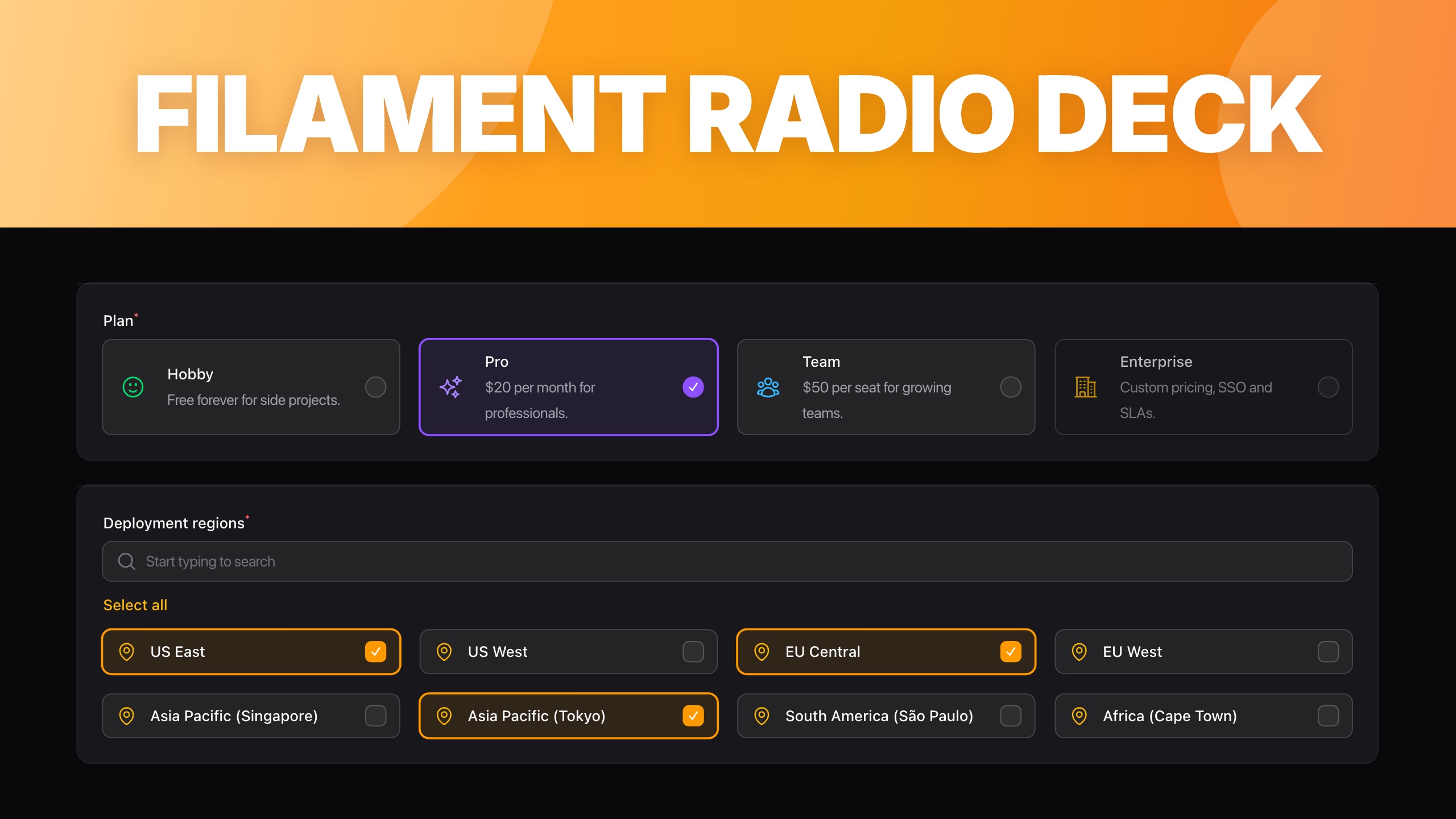

Turn filament default radio button into a selectable card with icons, title and description.

#Requirements

FilamentPHP v4.x
PHP 8.2+
Laravel v11.28+
Tailwind CSS v4.0+

#Installation

You can install the package via composer:

composer require jaocero/radio-deck

#For FilamentPHP v4 Users

To adhere to Filament's theming approach, you'll be required to employ a personalized theme in order to utilize this plugin.

Custom Theme Installation Filament v4 Docs - Creating a Custom Theme

Instead of adding the plugin's views to your tailwind.config.js file, add the following source directive to your custom theme's CSS file (usually resources/css/filament/admin/theme.css):

@source '../../../../vendor/jaocero/radio-deck/resources/views';

This will include the plugin's styles during the compilation process.

#Migration from v3 to v4

If you're upgrading from Radio Deck v3 to v4, please follow these steps:

#1. Update Dependencies

composer require jaocero/radio-deck:^2.0

#2. Create a Custom Theme

Since FilamentPHP v4 requires custom themes for plugins, you need to create one:

php artisan make:filament-theme

#3. Update Theme Configuration

Remove the old configuration from your tailwind.config.js:

// Remove this from tailwind.config.js
content: [
    ...
    './vendor/jaocero/radio-deck/resources/views/**/*.blade.php', // Remove this line
]

Add the source directive to your theme's CSS file instead:

/* Add this to resources/css/filament/admin/theme.css */
@source '../../../../vendor/jaocero/radio-deck/resources/views';

#4. Update Import Statements

Update your import statements to use the new namespace structure:

// Old (v1.x)
use JaOcero\RadioDeck\Forms\Components\RadioDeck;

// New (v2.x) - Same import, but make sure you're using v2.x
use JaOcero\RadioDeck\Forms\Components\RadioDeck;

#5. Method Changes

Some method names have been updated for better consistency:

// Old method
->gap('gap-4')

// New method (renamed for clarity & to avoid conflicts with Filament’s built-in gap)
->optionsGap('gap-4')

#Usage

use JaOcero\RadioDeck\Forms\Components\RadioDeck;
use Filament\Support\Enums\IconSize;
use Filament\Support\Enums\Alignment;
use Filament\Support\Enums\IconPosition;

public static function form(Form $form): Form
{
    return $form
        ->schema([
            RadioDeck::make('name')
                ->options([
                    'ios' => 'iOS',
                    'android' => 'Android',
                    'web' => 'Web',
                    'windows' => 'Windows',
                    'mac' => 'Mac',
                    'linux' => 'Linux',
                ])
                ->descriptions([
                    'ios' => 'iOS Mobile App',
                    'android' => 'Android Mobile App',
                    'web' => 'Web App',
                    'windows' => 'Windows Desktop App',
                    'mac' => 'Mac Desktop App',
                    'linux' => 'Linux Desktop App',
                ])
                ->icons([
                    'ios' => 'heroicon-m-device-phone-mobile',
                    'android' => 'heroicon-m-device-phone-mobile',
                    'web' => 'heroicon-m-globe-alt',
                    'windows' => 'heroicon-m-computer-desktop',
                    'mac' => 'heroicon-m-computer-desktop',
                    'linux' => 'heroicon-m-computer-desktop',
                ])
                ->required()
                ->iconSizes(IconSize::Medium) // Medium | Small | Large | ExtraLarge | TwoExtraLarge
                ->iconPosition(IconPosition::Before) // Before | After
                ->alignment(Alignment::Center) // Start | Center | End
                ->optionGap('gap-5') // Gap between Options and Descriptions between the Icon
                ->padding('px-4 py-6') // Padding around the deck
                ->extraCardsAttributes([ // Extra attributes for card elements
                    'class' => 'rounded-xl'
                ])
                ->extraOptionsAttributes([ // Extra attributes for option elements
                    'class' => 'text-3xl leading-none w-full flex flex-col items-center justify-center p-4'
                ])
                ->extraDescriptionsAttributes([ // Extra attributes for description elements
                    'class' => 'text-sm font-light text-center'
                ])
                ->multiple() // Enable multiple selection (returns array)
                ->colors('primary')
                // or you can use an array of colors per option or you can use one color for all options
                // ->colors([
                //     'ios' => 'blue',
                //     'android' => 'green',
                //     'web' => 'purple',
                // ])
                ->columns(3)
                // or you can use how many columns every screen size
                // ->columns([
                //     'sm' => 1,
                //     'md' => 2,
                //     'lg' => 3,
                // ])
                ->columnSpanFull()
        ]);
}

#Using Enums

You can also utilize an Enum class for ->options(), ->descriptions(), and ->icons(). Here's an example:

<?php

namespace App\Filament\Enums;

use Filament\Support\Contracts\HasLabel;
use JaOcero\RadioDeck\Contracts\HasDescriptions;
use JaOcero\RadioDeck\Contracts\HasIcons;

enum AssetType: string implements HasLabel, HasDescriptions, HasIcons
{
    case iOs = 'ios';
    case Android = 'android';
    case Web = 'web';
    case Windows = 'windows';
    case Mac = 'mac';
    case Linux = 'linux';

    public function getLabel(): ?string
    {
        return match ($this) {
            self::iOs => 'iOS',
            self::Android => 'Android',
            self::Web => 'Web',
            self::Windows => 'Windows',
            self::Mac => 'Mac',
            self::Linux => 'Linux',
        };
    }

    public function getDescriptions(): ?string
    {
        return match ($this) {
            self::iOs => 'iOS Mobile App',
            self::Android => 'Android Mobile App',
            self::Web => 'Web App',
            self::Windows => 'Windows Desktop App',
            self::Mac => 'Mac Desktop App',
            self::Linux => 'Linux Desktop App',
        };
    }

    public function getIcons(): ?string
    {
        return match ($this) {
            self::iOs => 'heroicon-m-device-phone-mobile',
            self::Android => 'heroicon-m-device-phone-mobile',
            self::Web => 'heroicon-m-globe-alt',
            self::Windows => 'heroicon-m-computer-desktop',
            self::Mac => 'heroicon-m-computer-desktop',
            self::Linux => 'heroicon-m-computer-desktop',
        };
    }
}

Usage with Enum:

public static function form(Form $form): Form
{
    return $form
        ->schema([
            RadioDeck::make('name')
                ->options(AssetType::class)
                ->descriptions(AssetType::class)
                ->icons(AssetType::class)
                ->required()
                ->iconPosition(IconPosition::Before)
                ->alignment(Alignment::Center)
                ->colors('primary')
                ->columns(3),
        ])
        ->columns('full');
}

#Changelog

Please see CHANGELOG for more information on what has changed recently.

#Contributing

Please see CONTRIBUTING for details.

#Security Vulnerabilities

Please review our security policy on how to report security vulnerabilities.

#Credits

#License

The MIT License (MIT). Please see License File for more information.
