A reusable WhatsApp bridge and settings plugin for Laravel 12+ and Filament 5. Supports multiple providers: Bridge, Meta WhatsApp Cloud API, and Twilio WhatsApp.

#Features

• Multi-provider support - Bridge, Meta, Twilio with per-provider configuration
• Provider selection - Enum-based provider switching with labels and colors
• QR Code pairing - Connect WhatsApp via QR code (Bridge provider)
• Connection status - Real-time connection monitoring with polling
• Test messaging - Send test messages from the settings page
• Encrypted tokens - API tokens encrypted at rest in the database
• OTP support - Built-in OTP message templating with custom variables & live preview
• Bilingual - Full English and Arabic translations

#Screenshots

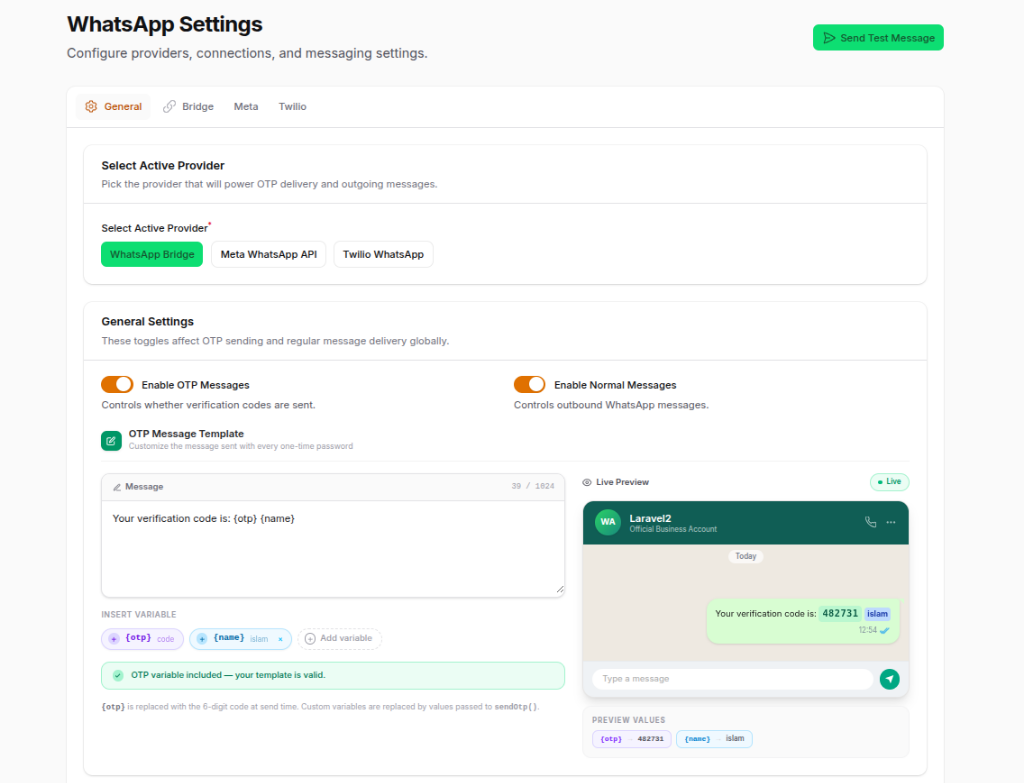

#General Settings & OTP Template Editor

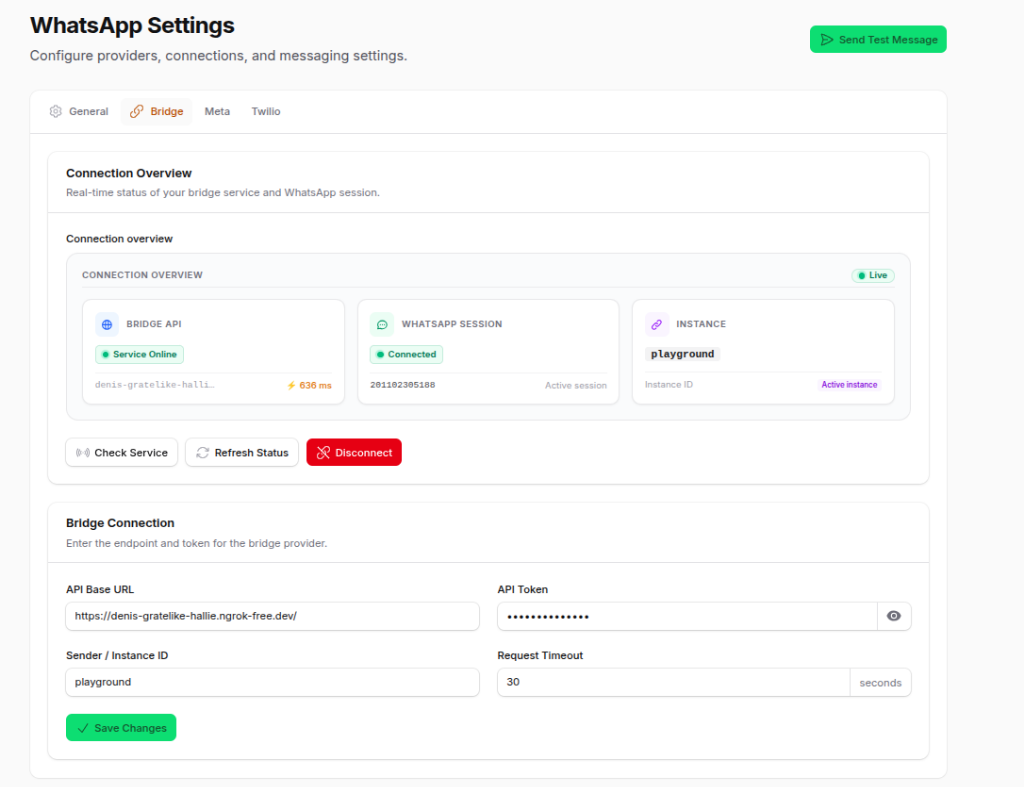

#WhatsApp Bridge Connection Overview

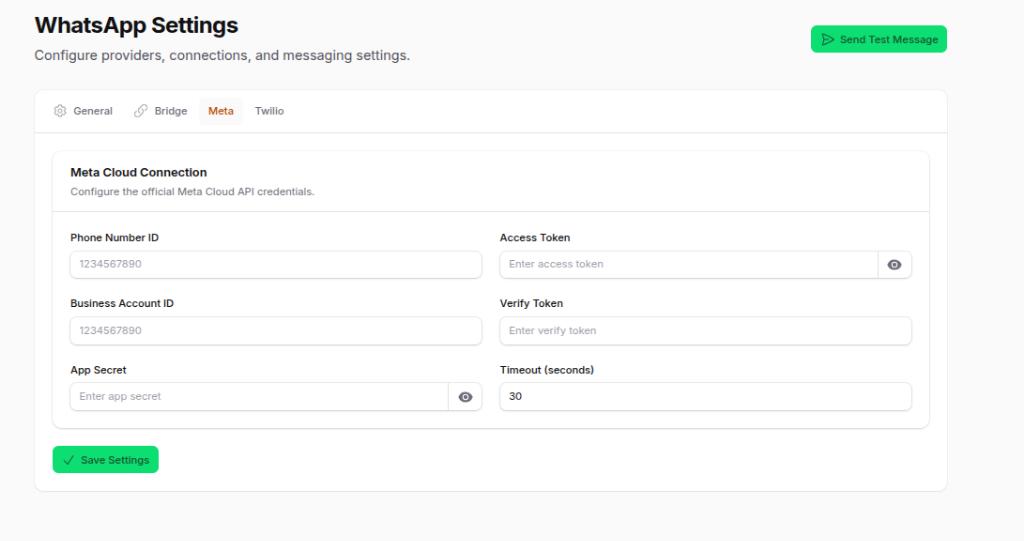

#Meta WhatsApp Cloud API Configuration

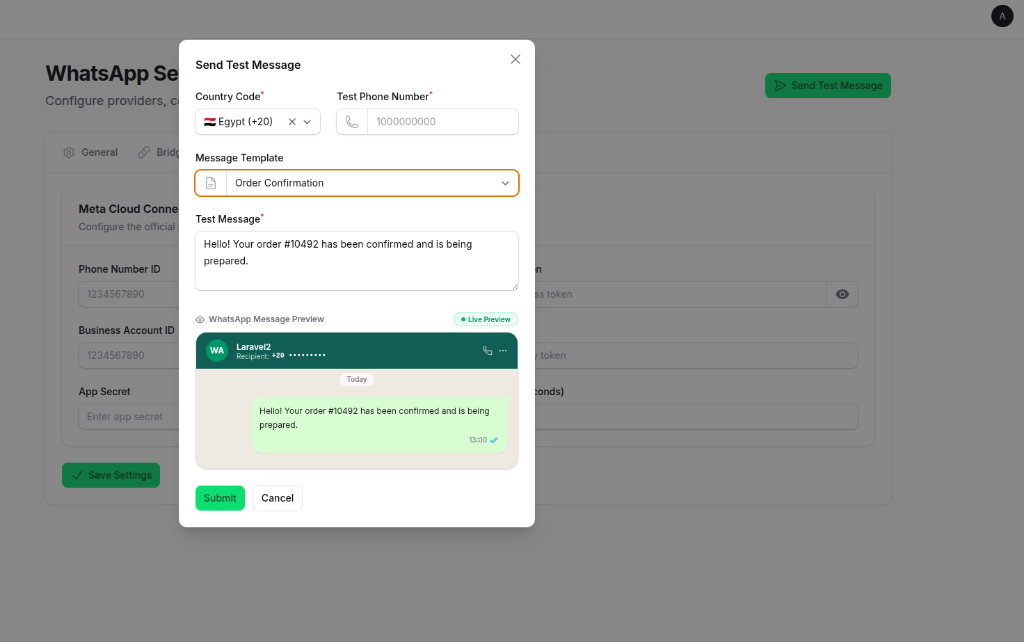

#Send Test Message & Live Preview Modal

#Installation

#1. Install via Composer

composer require islamv/whatsapp-bridge-settings-plugin

#2. Publish config

php artisan vendor:publish --tag=whatsapp-bridge-settings-config

#3. Publish migrations

php artisan vendor:publish --tag=whatsapp-bridge-settings-migrations

#4. Run migrations

php artisan migrate

#5. Register the Filament plugin

Add the plugin to your Filament PanelProvider:

use Islamv\WhatsappBridgeSettingsPlugin\WhatsappBridgeSettingsPlugin;

public function panel(Panel $panel): Panel
{
    return $panel
        ->plugin(WhatsappBridgeSettingsPlugin::make());
}

#6. Add Tailwind CSS v4 source paths

Required if your project uses Tailwind CSS v4 (@import 'tailwindcss' in your CSS entry point).

Tailwind v4 only generates CSS for classes it finds in scanned files. Without these entries, all utility classes used by the plugin's views and PHP files will be purged, leaving the settings page completely unstyled.

Run the bundled artisan command to automatically inject the required @source directives:

php artisan whatsapp-bridge-settings:install-tailwind

Then rebuild your CSS:

npm run build

The command appends the following lines to resources/css/app.css (default):

@source '../../vendor/islamv/whatsapp-bridge-settings-plugin/resources/views/**/*.blade.php';
@source '../../vendor/islamv/whatsapp-bridge-settings-plugin/src/**/*.php';

Options:

# Custom CSS file path
php artisan whatsapp-bridge-settings:install-tailwind --css=resources/css/panel.css

The command is idempotent — running it multiple times will not add duplicate lines.

#7. Configure WhatsApp credentials

Open the WhatsApp Settings page in your Filament admin panel and configure your preferred provider. If you are using the local sibling service whatsapp-bridge, the Bridge provider defaults to http://127.0.0.1:3000.

#Supported Providers

#WhatsApp Bridge (Self-hosted)

Self-hosted WhatsApp Web bridge with QR code pairing support.

WHATSAPP_ACTIVE_PROVIDER=bridge
WHATSAPP_BRIDGE_API_BASE_URL=http://127.0.0.1:3000
WHATSAPP_BRIDGE_API_TOKEN=your-token
WHATSAPP_BRIDGE_SENDER=your-sender-id
WHATSAPP_BRIDGE_TIMEOUT=30

#Meta WhatsApp Cloud API

Official Meta WhatsApp Business Cloud API.

WHATSAPP_ACTIVE_PROVIDER=meta
WHATSAPP_META_PHONE_NUMBER_ID=your-phone-number-id
WHATSAPP_META_ACCESS_TOKEN=your-access-token
WHATSAPP_META_BUSINESS_ACCOUNT_ID=your-business-account-id
WHATSAPP_META_VERIFY_TOKEN=your-verify-token
WHATSAPP_META_APP_SECRET=your-app-secret
WHATSAPP_META_TIMEOUT=30

#Twilio WhatsApp

Twilio WhatsApp Messaging API.

WHATSAPP_ACTIVE_PROVIDER=twilio
TWILIO_ACCOUNT_SID=your-account-sid
TWILIO_AUTH_TOKEN=your-auth-token
TWILIO_FROM_NUMBER=+1234567890
TWILIO_TIMEOUT=30

#Common Settings

WHATSAPP_DEFAULT_COUNTRY_CODE=20
WHATSAPP_OTP_ENABLED=true
WHATSAPP_MESSAGES_ENABLED=true
WHATSAPP_TIMEOUT=30
WHATSAPP_OTP_TEMPLATE="Your verification code is: {otp}"
WHATSAPP_LOG_CHANNEL=stack

#Usage

#Send a normal message via Facade

use Islamv\WhatsappBridgeSettingsPlugin\Facades\WhatsappBridge;

WhatsappBridge::sendMessage('201000000000', 'Hello from Laravel!');

#Send an OTP via Facade

use Islamv\WhatsappBridgeSettingsPlugin\Facades\WhatsappBridge;

$otp = '123456';

WhatsappBridge::sendOtp('201000000000', $otp);

#Using the Enum

use Islamv\WhatsappBridgeSettingsPlugin\Enums\WhatsappProvider;

// Get provider label
WhatsappProvider::Bridge->getLabel(); // 'WhatsApp Bridge'

// Get provider color
WhatsappProvider::Meta->getColor(); // 'info'

// Iterate all providers
foreach (WhatsappProvider::cases() as $provider) {
    echo $provider->getLabel();
}

#Using Dependency Injection

use Islamv\WhatsappBridgeSettingsPlugin\Contracts\WhatsappProviderInterface;

class SendOrderConfirmation
{
    public function __construct(
        protected WhatsappProviderInterface $whatsapp
    ) {}

    public function handle(): void
    {
        $this->whatsapp->sendMessage(
            '201000000000',
            'Your order is confirmed.'
        );
    }
}

#Using the OTP Sender

use Islamv\WhatsappBridgeSettingsPlugin\Services\WhatsappOtpSender;

class SendVerificationCode
{
    public function __construct(
        protected WhatsappOtpSender $otpSender
    ) {}

    public function handle(): void
    {
        $otp = random_int(100000, 999999);

        $this->otpSender->send('201000000000', (string) $otp);
    }
}

#Architecture

src/
├── WhatsappBridgeSettingsPlugin.php          # Filament plugin registration
├── WhatsappBridgeSettingsPluginServiceProvider.php
├── Contracts/
│   └── WhatsappProviderInterface.php         # Provider contract
├── Enums/
│   └── WhatsappProvider.php                  # Provider enum with label and color
├── Concerns/
│   ├── ManagesPhoneNumbers.php               # Phone normalization and masking
│   ├── HasLogChannel.php                     # Log channel resolution
│   └── HandlesOtpMessages.php                # OTP template rendering
├── Services/
│   ├── WhatsappBridge.php                    # Bridge HTTP implementation
│   ├── MetaWhatsapp.php                      # Meta Cloud API implementation
│   ├── TwilioWhatsapp.php                    # Twilio API implementation
│   └── WhatsappOtpSender.php                 # OTP sending service
├── Settings/
│   └── WhatsappSettingsRepository.php        # Multi-provider settings storage
├── Filament/
│   └── Pages/
│       └── WhatsappSettingsPage.php          # Filament settings page
└── Facades/
    └── WhatsappBridge.php                    # Facade

resources/
├── lang/
│   ├── en/messages.php
│   └── ar/messages.php
└── views/

config/
└── whatsapp-bridge-settings.php

database/
└── migrations/
    └── create_whatsapp_bridge_settings_table.php

tests/
├── ConfigTest.php
├── ServiceProviderTest.php
├── ProviderSelectionTest.php
├── WhatsappBridgeTest.php
├── MetaWhatsappTest.php
├── TwilioWhatsappTest.php
├── WhatsappOtpSenderTest.php
└── WhatsappSettingsRepositoryTest.php

#Testing

vendor/bin/phpunit

#Changelog

See CHANGELOG.md for recent changes.

#Contributing

See CONTRIBUTING.md for contribution guidelines.

#Security

See SECURITY.md for security policies and vulnerability reporting.

#License

The MIT License (MIT). See LICENSE for more information.
