A Filament v3 & v4 plugin that turns the top navigation into a single scrollable row instead of letting it wrap into multiple rows when you have many navigation groups or clusters. Adds horizontal mouse-wheel scrolling and an edge-fade affordance so users can tell there's more to see.

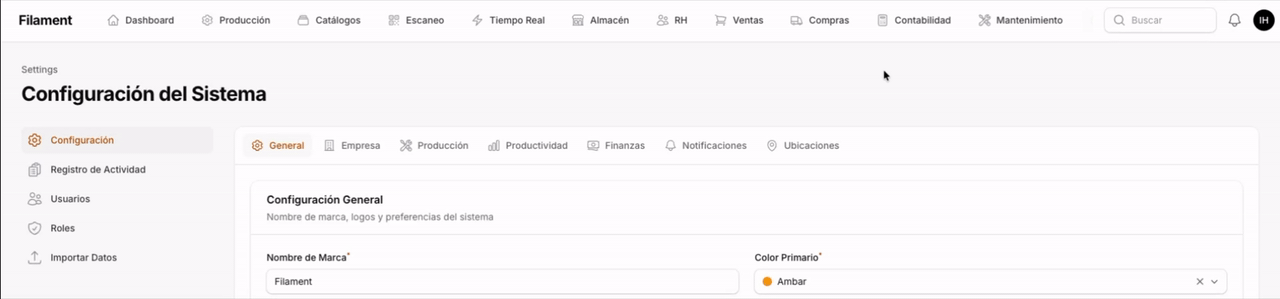

#Demo

#The Problem

Filament's topNavigation() wraps clusters into two (or more) rows when they don't fit, eating vertical space and looking cluttered. Two-word labels can also break across lines. With a lot of clusters there's no visual hint that more navigation exists off-screen, and a regular mouse wheel can't scroll it.

#The Solution

• Forces the topnav into a single row with a hidden scrollbar.
• Mouse-wheel scrolling: vertical wheel ticks scroll the topnav horizontally.
• Edge fade affordance: a soft gradient appears on the leading/trailing edges only when there's more content in that direction, so users instinctively scroll.
• Optional scroll-snap so swipes/wheel land on cluster boundaries.
• Auto-scrolls focused items into view for keyboard navigation.

#Requirements

• PHP 8.1+
• Laravel 10, 11, or 12
• Filament 3.0+ or 4.0+

#Installation

composer require emuniq/filament-scrollable-topnav

Register the plugin in your panel provider:

use Emuniq\FilamentScrollableTopnav\ScrollableTopnavPlugin;

public function panel(Panel $panel): Panel
{
    return $panel
        ->topNavigation()
        ->plugins([
            ScrollableTopnavPlugin::make(),
        ]);
}

That's it. The plugin ships its own CSS and JS as Filament assets and injects a small inline <style> + config block via the HEAD_END render hook to prevent the brief double-row flash before the asset CSS loads.

#Optional: bundle into a custom theme

If you have a custom Filament theme and want the styles compiled into your theme bundle (zero FOUC, fully cacheable), import the plugin CSS:

php artisan scrollable-topnav:install
npm run build

Or manually add to resources/css/filament/{panel}/theme.css:

@import '../../../../vendor/emuniq/filament-scrollable-topnav/resources/css/plugin.css';

#Configuration

Every behavior is opt-in/out via builder methods on ScrollableTopnavPlugin::make():

Example with everything tuned:

ScrollableTopnavPlugin::make()
    ->fadeSize('48px')
    ->scrollSnap()
    ->wheelToScroll(false), // disable on a panel that already uses wheel for something else

#How It Works

1. Critical inline CSS via the HEAD_END render hook applies flex-wrap: nowrap and white-space: nowrap immediately on parse, preventing FOUC.
2. Filament asset CSS (plugin.css) provides the full styling: hidden scrollbar, mask-image edge fades, scroll-snap rules — all gated by data-* attributes that the JS toggles.
3. Filament asset JS (plugin.js) listens for wheel, scroll, focusin, and resize events on .fi-topbar-nav-groups. It detects mouse wheels (which only emit deltaY) and converts them to horizontal scroll while preserving native trackpad horizontal swipes (deltaX). It also normalizes WheelEvent.deltaMode so high-resolution and line-step wheels both feel right.
4. Config injection — the inline <script> sets window.scrollableTopnavConfig before the deferred plugin JS runs, so each panel can have its own settings.

#Compatibility Notes

• The 1024px breakpoint matches Filament's lg, where topNavigation() becomes a row instead of a sidebar. Below it the plugin is a no-op.
• mask-image is supported in all evergreen browsers. IE11 isn't supported (Filament 4 doesn't support it either).
• Livewire navigation is handled — the plugin re-binds on livewire:navigated.

#License

MIT
