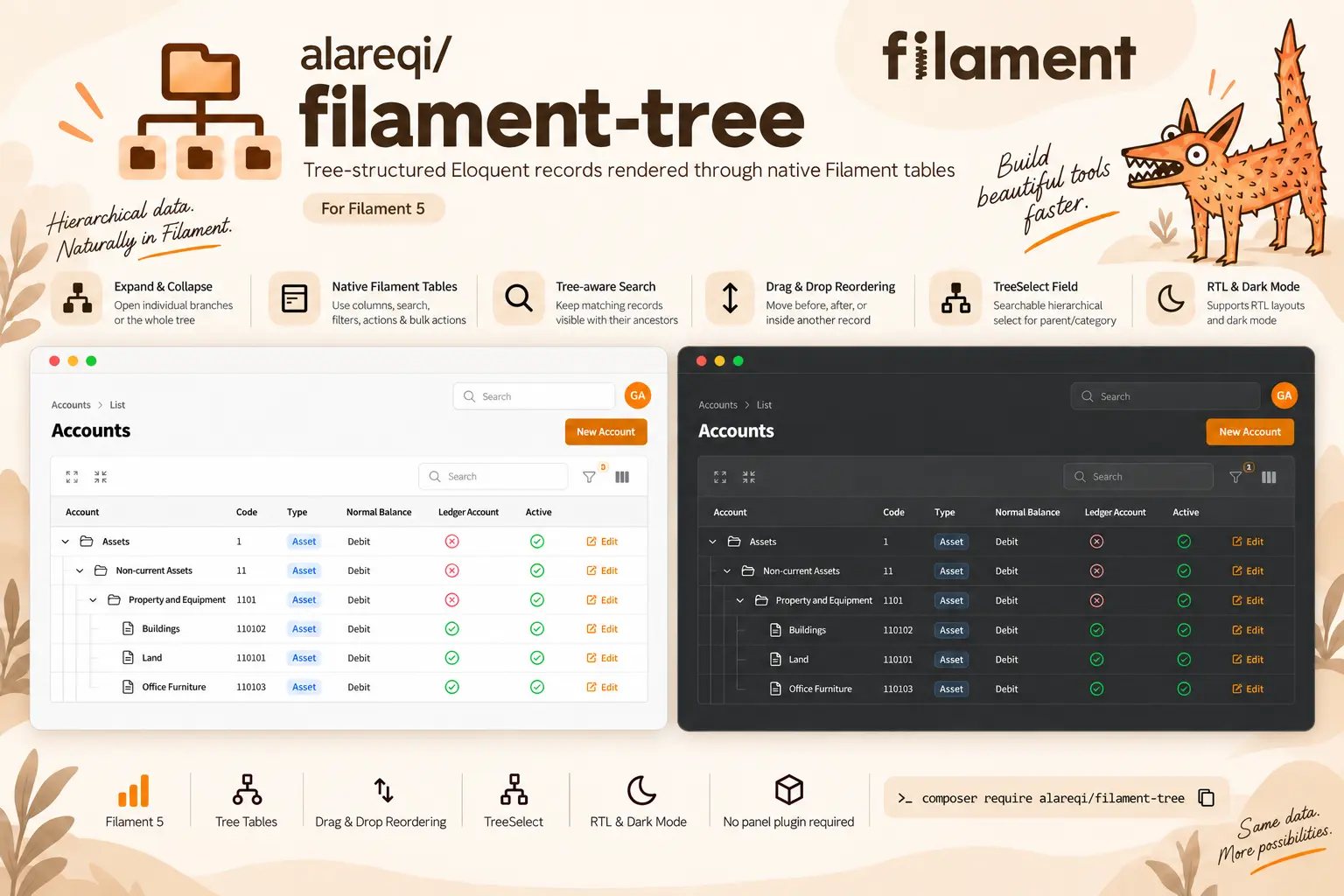

Display adjacency-list Eloquent models as expandable, searchable, filterable, and reorderable trees in Filament 5. The package also includes a searchable tree-select form field.

#Features

• Expand and collapse individual branches or the entire tree
• Use normal Filament table columns, search, filters, actions, and bulk actions
• Keep matching records visible together with their ancestors while filtering
• Drag records before, after, or inside another record
• Save all reorder changes together in a database transaction
• Select a parent or category with the TreeSelect form component
• Support integer and string keys, custom root values, RTL layouts, and dark mode
• Load package styles automatically—no panel plugin or custom theme setup

#Requirements

• PHP 8.3 or later
• Laravel with Eloquent
• Filament 5

#Installation

composer require alareqi/filament-tree

Laravel discovers the service provider automatically. The provider registers the package views, translations, and compiled CSS, so no panel registration or asset publishing is required.

#Quick start

Assume categories is an adjacency-list table:

Schema::create('categories', function (Blueprint $table): void {
    $table->id();
    $table->string('name');
    $table->foreignId('parent_id')->nullable()->constrained('categories')->nullOnDelete();
    $table->unsignedInteger('sort_order')->default(0);
    $table->timestamps();
});

Add InteractsWithTreeTable to the resource's ListRecords page:

use Alareqi\FilamentTree\Concerns\InteractsWithTreeTable;
use Filament\Resources\Pages\ListRecords;

class ListCategories extends ListRecords
{
    use InteractsWithTreeTable;
}

Then use TreeColumn for the visible tree column and call tree() after defining the columns:

use Alareqi\FilamentTree\Columns\TreeColumn;
use Filament\Tables\Columns\TextColumn;
use Filament\Tables\Table;

public static function table(Table $table): Table
{
    return $table
        ->columns([
            TreeColumn::make('name')->searchable(),
            TextColumn::make('updated_at')->dateTime()->sortable(),
        ])
        ->reorderable('sort_order')
        ->tree(
            parentColumn: 'parent_id',
            treeColumn: 'name',
        );
}

The table starts expanded, root records have a null parent, and Filament's Enable reordering action starts tree reordering.

[!IMPORTANT] The column named by treeColumn must be a TreeColumn, and the list page must use InteractsWithTreeTable. Call reorderable() before tree() so the package can read Filament's reorder configuration.

#Tree select quick start

use Alareqi\FilamentTree\Forms\Components\TreeSelect;

TreeSelect::make('parent_id')
    ->label('Parent category')
    ->treeOptions(fn () => Category::query()
        ->orderBy('sort_order')
        ->get()
        ->map(fn (Category $category): array => [
            'value' => $category->getKey(),
            'parent' => $category->parent_id,
            'label' => $category->name,
        ]))
    ->placeholder('No parent')
    ->searchable();

The placeholder represents null when it is selectable, making this suitable for choosing an optional parent.

#Documentation

• Installation and data model
• Tree tables
• Reordering
• Tree select field
• Customization and API reference
• Troubleshooting and behavior notes

#License

Filament Tree is open-source software licensed under the MIT license.
